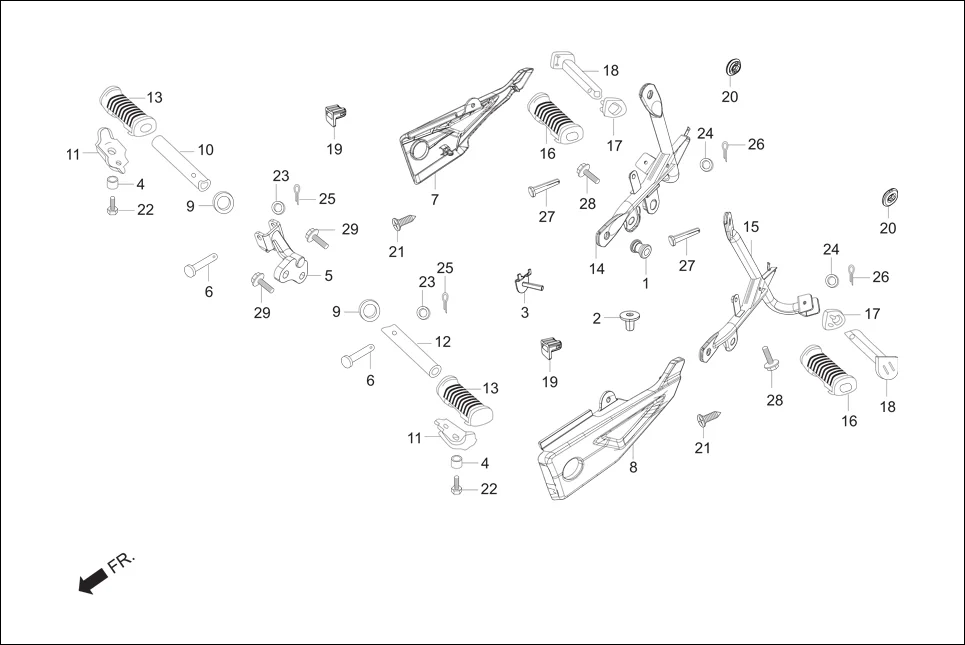

F-15-DRUM - STEP ASSY.
Hero Passion X PRO (Jan, 2019) · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18421-ABA-000 | RUBBER MUFF MOUNT | 1 | |
| 2 | 18442-ABA-000 | COLLAR MUFFLER MOUNT | 1 | |
| 3 | 1844A-AAZ-000 | MUFFLER MOUNT BOLT ASSY | 1 | |
| 4 | 37243-323-000 | COLLAR , METER SET | 2 | |
| 5 | 50160-KCC-900 | BRACKET COMP., R STEP | 1 | |
| 6 | 50603-KB4-000 | PIN, MAIN STEP BAR JOINT | 2 | |
| 7 | 50611-AAZ-000 | PILLION STEP COVER RH | 1 | |
| 8 | 50612-AAZ-000 | PILLION STEP COVER LH | 1 | |
| 9 | 50614-413-000 | WASHER, MAIN STEP | 2 | |
| 10 | 50618-KCC-000 | BAR R STEP | 1 | |
| 11 | 50619-425-010 | STOPPER, STEP RUBBER | 2 | |
| 12 | 50619-KCC-000 | BAR L STEP | 1 | |
| 13 | 50661-425-670 | RUBBER STEP | 2 | |
| 14 | 50701-AAZ-000 | BRKT COMP R PILLION STEP | 1 | |
| 15 | 50702-AAZ-000 | BRKT COMP L PILLION STEP | 1 | |
| 16 | 50711-198-720 | RUBBER, STEP PILLION | 2 | |
| 17 | 50712-405-000 | WASHER, PILLION STEP | 2 | |
| 18 | 50715-405-000 | BAR COMP., STEP PILLION | 2 | |
| 19 | 83502-KCC-900 | GROMMET, SIDE COVER | 2 | |
| 20 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 21 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 2 | |
| 22 | 92000-06016-0A | BOLT, HEX., 6 X 16 | 2 | |
| 23 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 24 | 94101-08000 | WASHER, PLAIN, 8MM | 2 | |
| 25 | 94201-16120 | PIN, SPLIT, 1.6 X 12 | 2 | |
| 26 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 2 | |
| 27 | 95015-81000 | PIN A PILLION STEP | 2 | |
| 28 | 95701-08016-07 | BOLT FLANGE, 8 X 16 | 2 | |
| 29 | 95701-10045-07 | BOLT FLANGE, 10 X 45 | 2 | |
