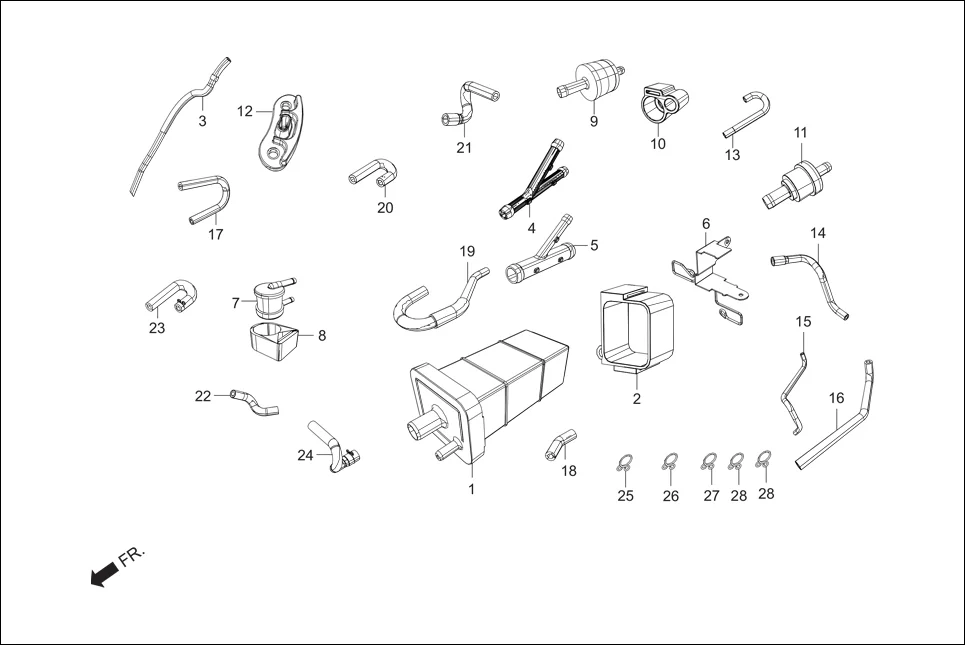

F-11A - FUEL TANK (CANISTER ASSY.)
Hero Passion X PRO (Jan, 2019) · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAH-A0099 | CANISTER COMP | 1 | |
| 2 | 17411-ABA-000 | SUSP CANISTER | 1 | |
| 3 | 17199-ABA-000 | TUBE DRAIN B | 1 | |
| 4 | 17230-AAH-100 | JOINT 3 WAY | 1 | |
| 5 | 17230-AAH-A00 | JOINT 3 WAY, DRAIN | 1 | |
| 6 | 17300-ABA-000 | CANISTER STAY | 1 | |
| 7 | 17420-AAE-100 | ROLL OVER VALVE | 1 | |
| 8 | 17421-ABA-000 | SUSP ROLL OVER VALVE | 1 | |
| 9 | 17430-AAE-100 | ONE WAY VALVE | 1 | |
| 10 | 17431-AAZ-000 | SUSP ONE WAY VALVE | 1 | |
| 11 | 17460-AAE-10099 | PURGE VALVE | 1 | |
| 12 | 17646-ABA-000 | RUBBER SEAL, BREATHER | 1 | |
| 13 | 17670-ABA-000 | PURGE TUBE A | 1 | |
| 14 | 17671-ABA-000 | PURGE TUBE B | 1 | |
| 15 | 17682-AAZ-000 | TUBE DRAIN A | 1 | |
| 16 | 17690-AAZ-000 | TUBE A PIPE BREATHER | 1 | |
| 17 | 17691-AAZ-000 | TUBE A CANISTER | 1 | |
| 18 | 17693-AAZ-000 | TUBE A J3W | 1 | |
| 19 | 17694-AAZ-000 | TUBE B J3W COMP | 1 | |
| 20 | 17695-ABA-000 | TUBE BREATHER OWV | 1 | |
| 21 | 17696-ABA-000 | TUBE BREATHER CANISTER | 1 | |
| 22 | 17699-AAZ-000 | TUBE DRAIN CANISTER | 1 | |
| 23 | 1769F-ABA-000 | TUBE BREATHER OWV SUB ASSY | 1 | |
| 24 | 1769G-ABA-000 | TUBE BREATHER CANISTER SUB ASSY | 1 | |
| 25 | 95002-02080 | CLIP, TUBE | 13 | |
| 26 | 95002-02100 | CLIP, B-10 TUBE | 1 | |
| 27 | 95002-02120 | CLIP, TUBE(B12) | 1 | |
| 28 | 95002-70000 | CLIP, C11 TUBE | 2 | |
