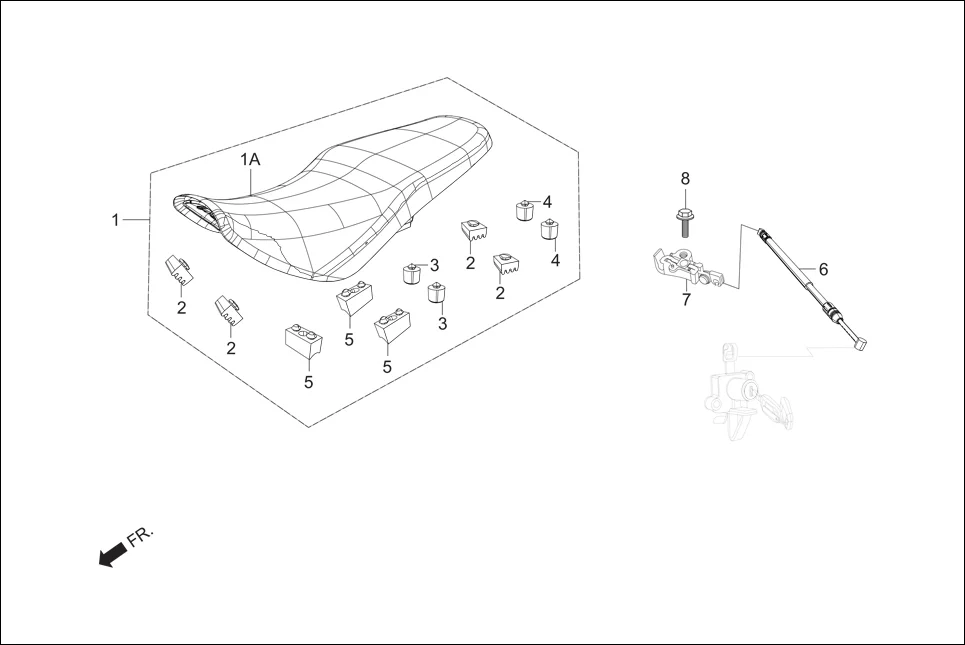

F-10A - SEAT ASSY.
Hero Passion X PRO (Jan, 2019) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77200-AAZ-000 | SEAT COMP DOUBLE | 1 | |
| 2 | 50524-001-000 | RUBBER, MAIN STAND STOPPER | 4 | |
| 3 | 77206-KTR-900 | RUBBER, SEAT CUSHION | 2 | |
| 4 | 77206-KCC-900 | RUBBER, SEAT CUSHION | 2 | |
| 5 | 77204-KCC-900 | RUBBER, `A SEAT SETTING | 3 | |
| 6 | 77156-AAZ-000 | CABLE SEAT LOCK | 1 | |
| 7 | 77220-KY6-000 | HOOK, SEAT CATCH | 1 | |
