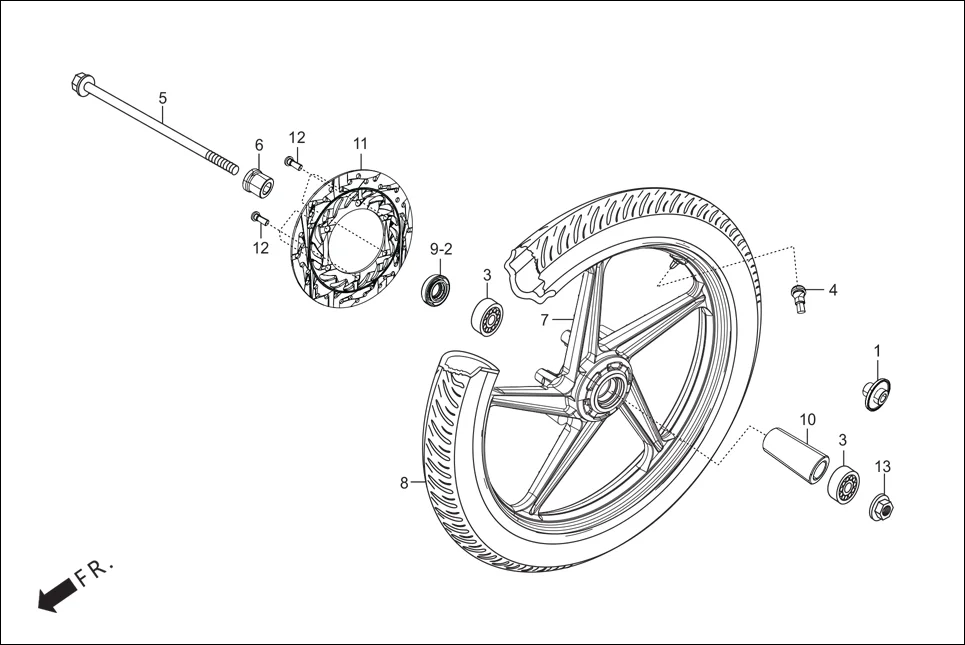

F-9A-DISC - FRONT WHEEL (DISC)
Hero Passion Pro BSVI (Jan, 2021) · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 90755-229-000 | OIL SEAL, 21 X 37 X 7 | 1 | |
| 3 | 96150-63010-10 | BEARING, BALL RADIAL, 6301 (UU) | 2 | |
| 7 | 44601-AAF-410 | WHEEL COMP FRONT | 1 | |
| 11 | 45251-KSP-861 | DISC, FR. BRAKE | 1 | |
| 12 | 90105-MK5-010 | BOLT, FR., DISC, 8 X 22 | 6 | |
