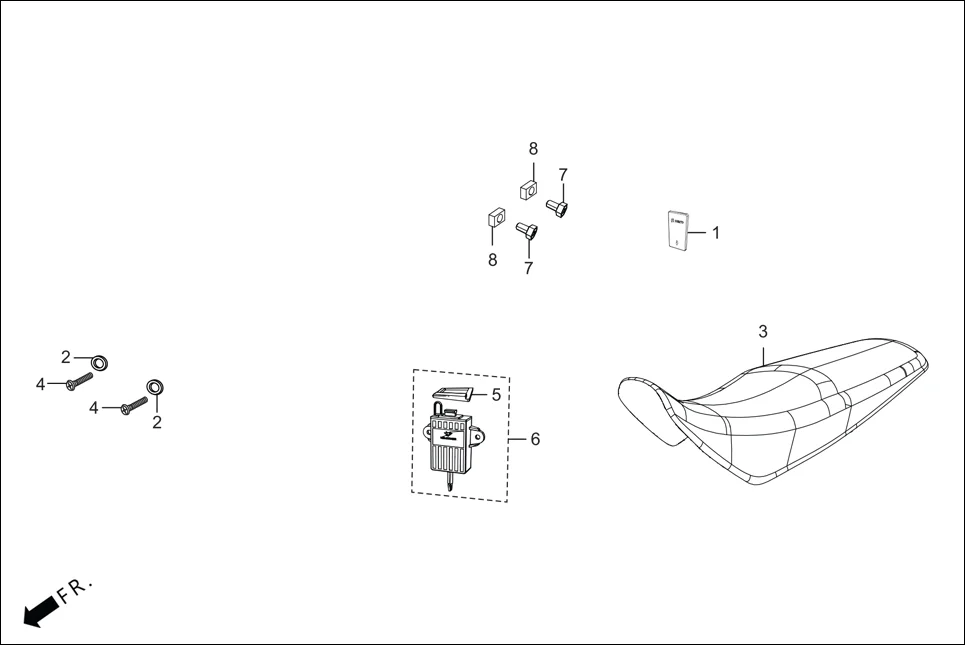

F-29A - BATTERY ASSY/USB CHARGER/COVER SEAT ASSY.(OPTIONAL)
Hero Passion Pro BSVI (Jan, 2021) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 80102-AAF-400 | COVER TOOL BOX | 1 | |
| 3 | 99630-AAC-800 | COVER ASSY. SEAT | 1 | |
| 3 | 99631-AAC-800 | COVER ASSY. SEAT | 1 | |
| 3 | 99639-AAC-800 | COVER ASSY. SEAT | 1 | |
| 3 | 99640-AAC-800 | COVER ASSY. SEAT | 1 | |
| 4 | 93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 5 | 31301-AAW-001 | GASKET, USB CHARGER | 1 | |
| 6 | 31300-AAT-001 | USB CHARGER ASSY | 1 | |
| 7 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 8 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
