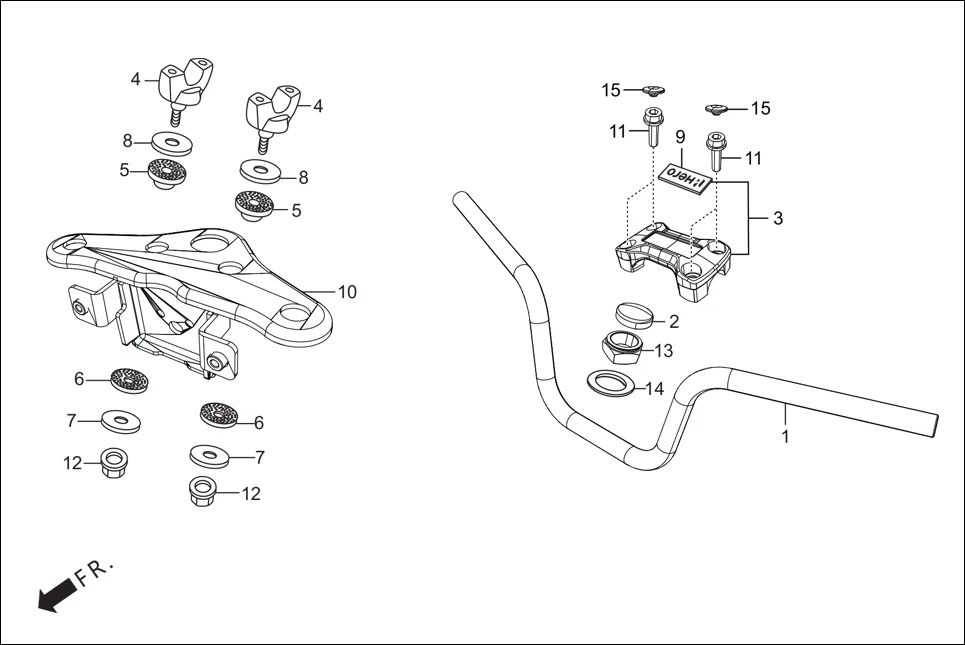

F-4 - HANDLE PIPE/TOP BRIDGE
Hero Passion Pro BSVI (Jan, 2021) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-AAC-800 | PIPE, STEERING HANDLE | 1 | |
| 2 | 53208-AAH-000 | CAP STRG. STEM | 1 | |
| 3 | 5313A-AAF-400 | HOLDER, HANDLE UP. SUB ASSY. | 1 | |
| 4 | 53132-124-000 | HOLDER, HANDLE PIPE UNDER | 2 | |
| 5 | 53133-198-900 | RUBBER, HANDLE CUSHION UPPER | 2 | |
| 6 | 53134-028-000 | RUBBER, HANDLE CUSHION UNDER | 2 | |
| 7 | 53135-198-900 | WASHER, HANDLE CUSHION | 2 | |
| 8 | 53136-198-900 | PLATE, HANDLE CUSHION | 2 | |
| 9 | 53130-AAF-400 | HERO MARK LOCKUP DOMING STICKER | 1 | |
| 10 | 53230-AAF-400 | BRIDGE COMP., FORK TOP | 1 | |
| 11 | 90102-KVN-900 | BOLT, SP. FLANGE SOCKET 6 X 22 | 4 | |
| 12 | 90304-AAH-F00 | NYLOCK NUT 10 MM | 2 | |
| 13 | 90304-AAH-000 | NUT STRG. STEM | 1 | |
| 14 | 90503-KTR-900 | WASHER, STEERING STEM | 1 | |
| 15 | 91455-MG8-000 | CAP, SOC BOLT 6 MM | 4 | |
