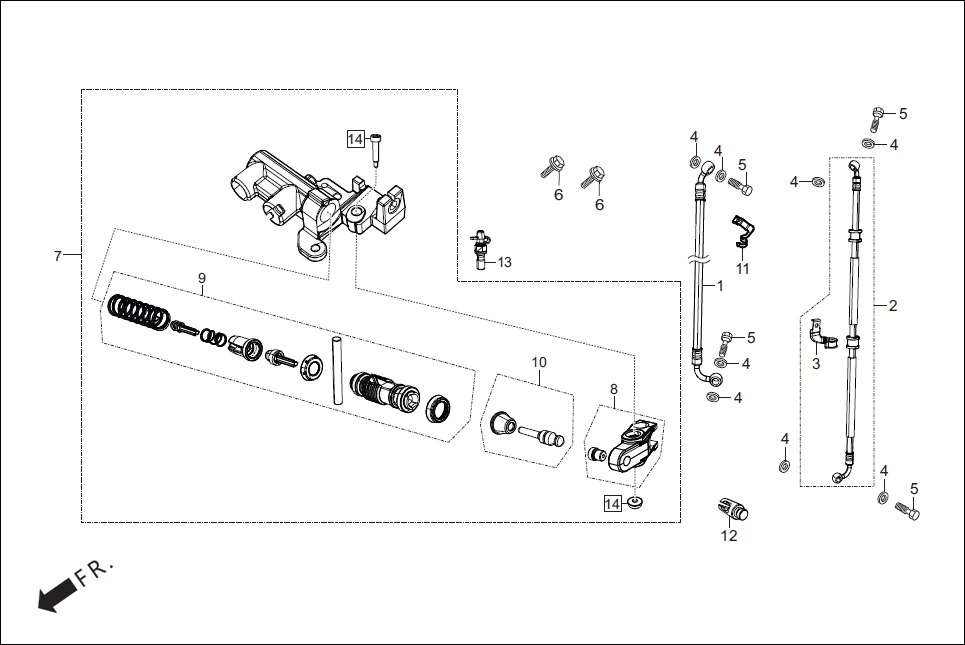

F-3C-DISC - FRONT DISC BRAKE ASSY. (CCB ASSY.)
Hero Passion Pro BSVI (Jan, 2021) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45120-AAF-410 | HOSE COMP-A,FR.BRAKE (M/C TO CCB) | 1 | |
| 2 | 45128-AAF-410 | HOSE COMP-B,FR. BRAKE (CCB TO CALIPER) | 1 | |
| 3 | 45156-AAC-840 | CLAMPER A FR. BRAKE | 1 | |
| 4 | 90545-300-000 | WASHER ,OIL BOLT | 8 | |
| 5 | 90145-MS9-610 | OIL BOLT, 10 X 22 | 4 | |
| 6 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 2 | |
| 7 | 43300-AAF-410 | CCB ASSEMBLY | 1 | |
| 8 | 43341-AAF-410 | LEVER KIT | 1 | |
| 9 | 43342-AAF-410 | PISTON KIT | 1 | |
| 10 | 43340-ABG-010 | PUSH ROD KIT | 1 | |
| 11 | 45156-KCC-840 | CLAMPER FRONT BRAKE | 1 | |
| 12 | 43455-ABG-010 | JOINT BRK ARM | 1 | |
| 13 | 43314-ABG-010 | BLEEDER SCREW ASSY. | 1 | |
| 14 | 43344-AAW-010 | CCB LEVER ROD KIT | 1 | |
