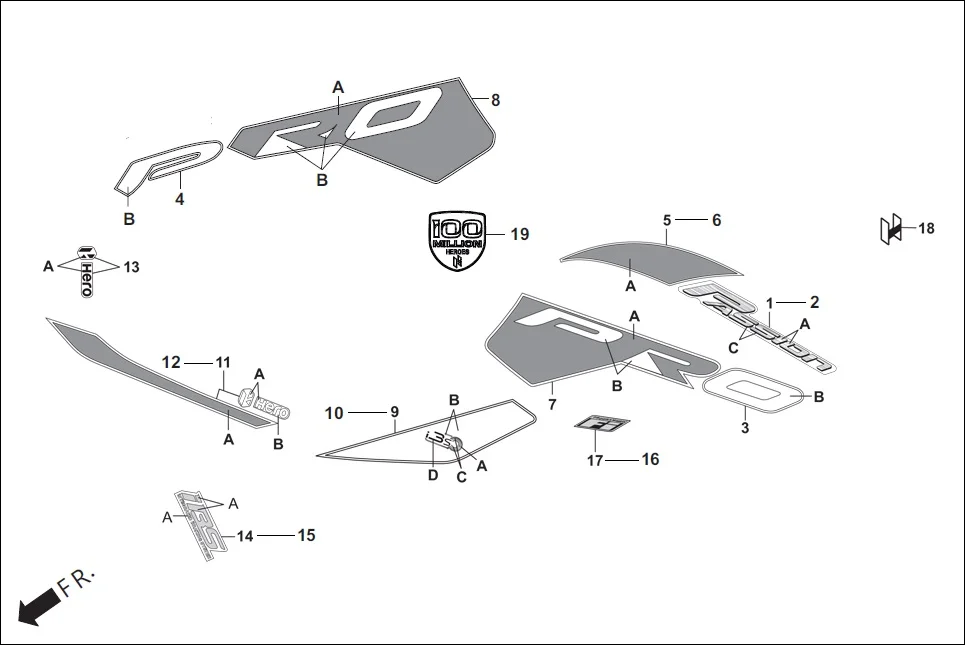

F-27 - STRIPES/MARKS
Hero Passion Pro BSVI (Jan, 2021) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86271-AAC-C00R | STRIPE A, SHROUD RH (TYPE-1) | 1 | |
| 2 | 86272-AAC-C00R | STRIPE A, SHROUD LH (TYPE-1) | 1 | |
| 3 | 86273-AAC-C00R | STRIPE B, SHROUD RH (TYPE-1) | 1 | |
| 4 | 86274-AAC-C00R | STRIPE B, SHROUD LH (TYPE-1) | 1 | |
| 5 | 86275-AAC-C00R | STRIPE A, R FUEL TANK (TYPE-1) | 1 | |
| 6 | 86276-AAC-C00R | STRIPE A, L FUEL TANK (TYPE-1) | 1 | |
| 7 | 86277-AAC-C00R | STRIPE B, R FUEL TANK (TYPE-1) | 1 | |
| 8 | 86278-AAC-C00R | STRIPE B, L FUEL TANK (TYPE-1) | 1 | |
| 9 | 86279-AAC-C00R | STRIPE COVER CENTRE RH (TYPE-1) | 1 | |
| 10 | 86280-AAC-C00R | STRIPE COVER CENTRE LH (TYPE-1) | 1 | |
| 11 | 86281-AAC-C00R | STRIPE REAR COWL RH (TYPE-1) | 1 | |
| 12 | 86282-AAC-C00R | STRIPE REAR COWL LH (TYPE-1) | 1 | |
| 13 | 77238-AAC-800R | H HERO MARK CENTER RR COWL (TYPE-1) | 1 | |
| 14 | 86780-AAC-800S | MARK IBS FR FENDER RH (TYPE-2) | 1 | |
| 15 | 86880-AAC-800S | MARK IBS FR FENDER LH (TYPE-2) | 1 | |
| 16 | 85404-AAC-800 | PROGRAMMED FI MARK LEFT | 1 | |
| 17 | 85401-AAW-A00 | PROGRAMMED FI MARK | 1 | |
| 18 | 86830-AAF-400 | EMBLEM WINDSCREEN | 1 | |
| 19 | 86835-AAC-C00 | EMBLEM, FUEL TANK | 1 | |
