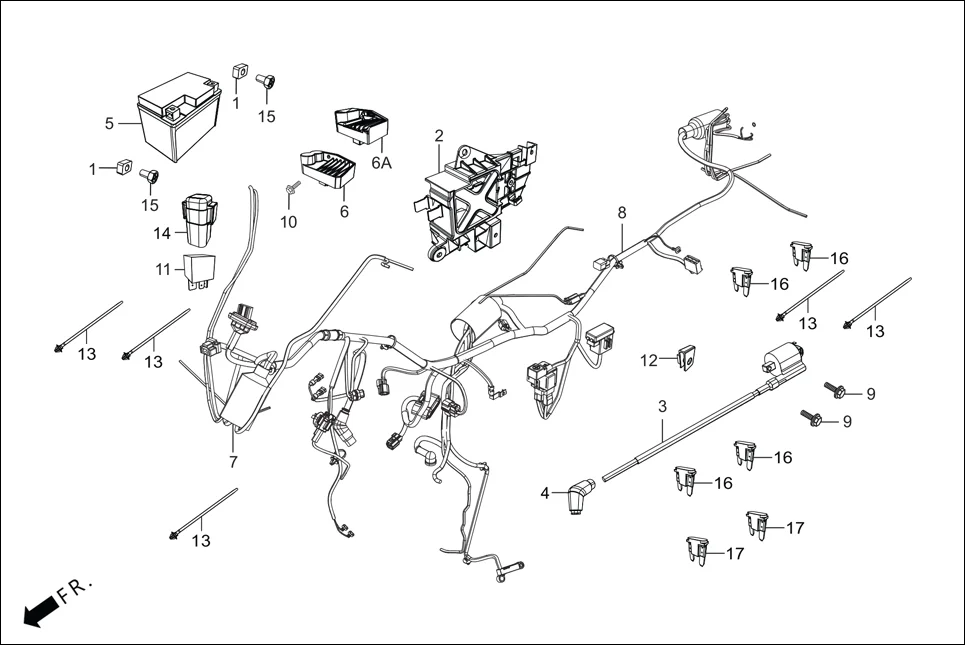

F-24 - WIRE HARNESS/BATTERY
Hero Passion Pro BSVI (Jan, 2021) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 90306-KRY-971 | NUT, BATTERY TERMINAL | 2 | |
| 2 | 17232-AAF-400 | BOX BATTERY | 1 | |
| 3 | 30510-AAF-401 | COIL COMP IGNITION. | 1 | |
| 3 | 30510-AAC-801 | COIL COMP IGNITION | 1 | |
| 4 | 30700-AAE-30099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31500-KVT-801 | BATTERY, ASSY. | 1 | |
| 6 | 31600-AAF-401 | REG. REC. COMP. | 1 | |
| 6 | 31600-ACK-001 | REG. REC. COMP. | 1 | |
| 7 | 32108-GW6-700 | COVER ,CONNECTOR | 1 | |
| 8 | 32100-AAC-810 | HARNESS, WIRE | 1 | |
| 11 | 38501-AAE-30099 | RELAY COMP START | 1 | |
| 13 | 91540-AAN-410 | CLIP, BAND HARN | 5 | |
| 14 | 38506-AAC-800 | SUSPENSION START RELAY | 1 | |
| 15 | 90122-KRY-971 | BOLT, BATTERY TERMINAL | 2 | |
| 16 | 98210-HMC-000 | MINI FUSE 10A | 4 | |
| 17 | 98215-HMC-000 | MINI FUSE 15A | 2 | |
