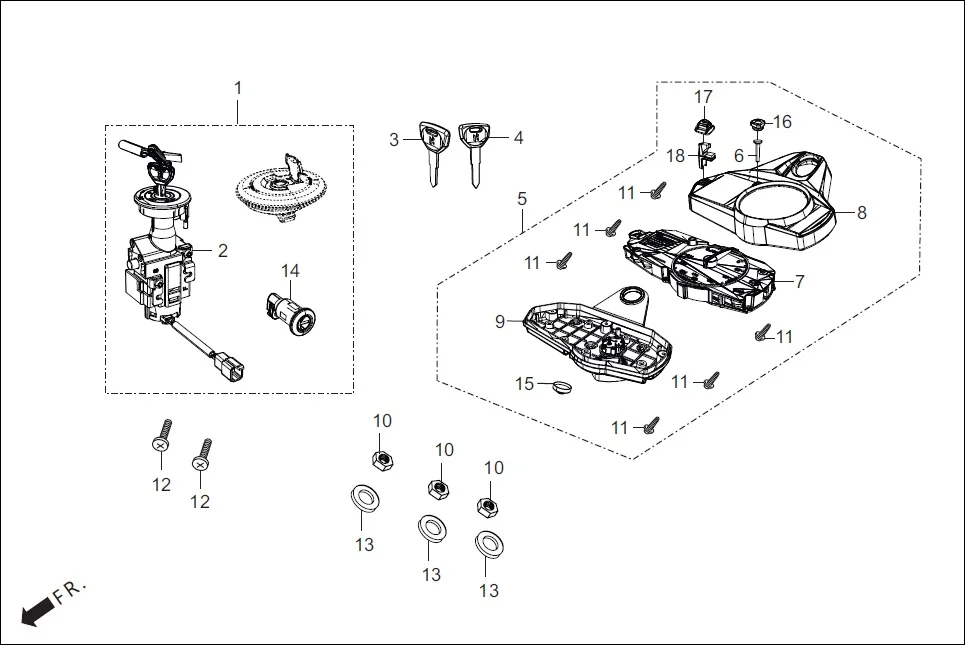

F-2-DISC - SPEEDOMETER/CABLE/KEY SET
Hero Passion Pro BSVI (Jan, 2021) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-AAC-801 | KEY SET | 1 | |
| 1 | 35010-AAF-401 | KEY SET | 1 | |
| 2 | 35100-AAC-801 | SWITCH ASSY., COMB & LOCK | 1 | |
| 2 | 35100-AAF-401 | SWITCH ASSY., COMB & LOCK | 1 | |
| 3 | 35121-AAC-801 | KEY BLANK NO.1 | 1 | |
| 4 | 35122-AAC-801 | KEY BLANK NO.2 | 1 | |
| 5 | 37100-AAC-84099 | METER ASSY., COMB. | 1 | |
| 6 | 37102-ABA-000 | KEY TOP | 1 | |
| 8 | 37113-AAC-84099 | UPPER CASE ASSY. | 1 | |
| 9 | 37112-AAC-83099 | CASE UNDER ASSY. | 1 | |
| 10 | 94001-06070-0S | NUT, HEX., 6 MM | 3 | |
| 11 | 93903-22480 | SCREW TAPPING 3 X 16 | 6 | |
| 12 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 13 | 94103-06700 | WASHER, PLAIN, 6 MM | 3 | |
| 14 | 77239-AAC-801 | KEY SEAT LOCK | 1 | |
| 14 | 77239-AAF-401 | KEY SEAT LOCK | 1 | |
| 15 | 37109-KWA-831 | CAP | 1 | |
| 16 | 37103-AAC-831 | SWITCH RUBBER | 1 | |
| 16 | 37103-AAC-832 | SWITCH RUBBER | 1 | |
| 17 | 37104-AAC-831 | I3S SWITCH BUTTON | 1 | |
| 17 | 37104-AAC-832 | I3S SWITCH BUTTON | 1 | |
| 18 | 37106-AAC-831 | LIGHT GUIDE | 1 | |
| 18 | 37106-AAC-832 | LIGHT GUIDE | 1 | |
