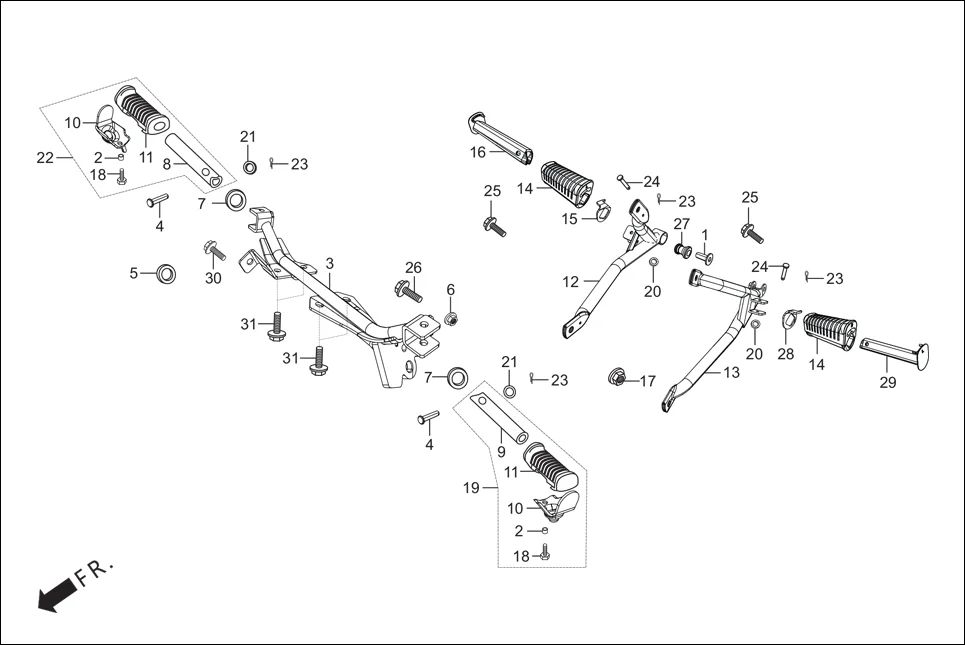

F-17 - STEP ASSY./PILLION STEP.
Hero Passion Pro BSVI (Jan, 2021) · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18442-KRC-900 | COLLAR, MUFFLER MOUNT | 1 | |
| 2 | 37243-323-000 | COLLAR , METER SET | 2 | |
| 3 | 50610-AAF-400 | BAR COMP RIDER STEP | 1 | |
| 4 | 50603-AAG-300 | PIN MAIN STEP BAR JOINT | 2 | |
| 5 | 94103-10000 | WASHER, PLAIN, 10MM | 1 | |
| 6 | 94050-10000 | NUT, FLANGE, 10MM | 1 | |
| 7 | 50614-413-000 | WASHER, MAIN STEP | 2 | |
| 8 | 50618-KCC-000 | BAR R STEP | 1 | |
| 9 | 50619-KCC-000 | BAR L STEP | 1 | |
| 10 | 50619-AAF-400 | STOPPER, STEP RUBBER | 2 | |
| 11 | 50661-425-670 | RUBBER STEP | 2 | |
| 12 | 50701-AAF-400 | BRACKET COMP., RPILLION STEP | 1 | |
| 13 | 50702-AAF-400 | BRACKET COMP., LPILLION STEP | 1 | |
| 14 | 50710-461-770 | RUBBER, STEP PILLION | 2 | |
| 15 | 50712-AAG-300 | WASHER R PILLION STEP | 1 | |
| 16 | 50715-KCC-900 | BAR R PILLION STEP | 1 | |
| 18 | 92000-06016-0A | BOLT, HEX., 6 X 16 | 2 | |
| 19 | 50630-AAF-400 | STEP L ASSY RIDER | 1 | |
| 21 | 94101-08000 | WASHER, PLAIN, 8MM | 2 | |
| 22 | 50620-AAF-400 | STEP R ASSY RIDER | 1 | |
| 23 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 4 | |
| 24 | 95015-81000 | PIN A PILLION STEP | 2 | |
| 25 | 95701-08018-07 | BOLT FLANGE 8 X 18 | 2 | |
| 26 | 95801-10055-00 | BOLT, FLANGE, 10X55 | 1 | |
| 27 | 18421-438-670 | RUBBER, MUFFLER MOUNT | 1 | |
| 28 | 50713-AAG-300 | WASHER L PILLION STEP | 1 | |
| 29 | 50718-KCC-900 | BAR L PILLION STEP | 1 | |
| 31 | 95701-08020-07 | BOLT, FLANGE, 8 X 20 | 4 | |
