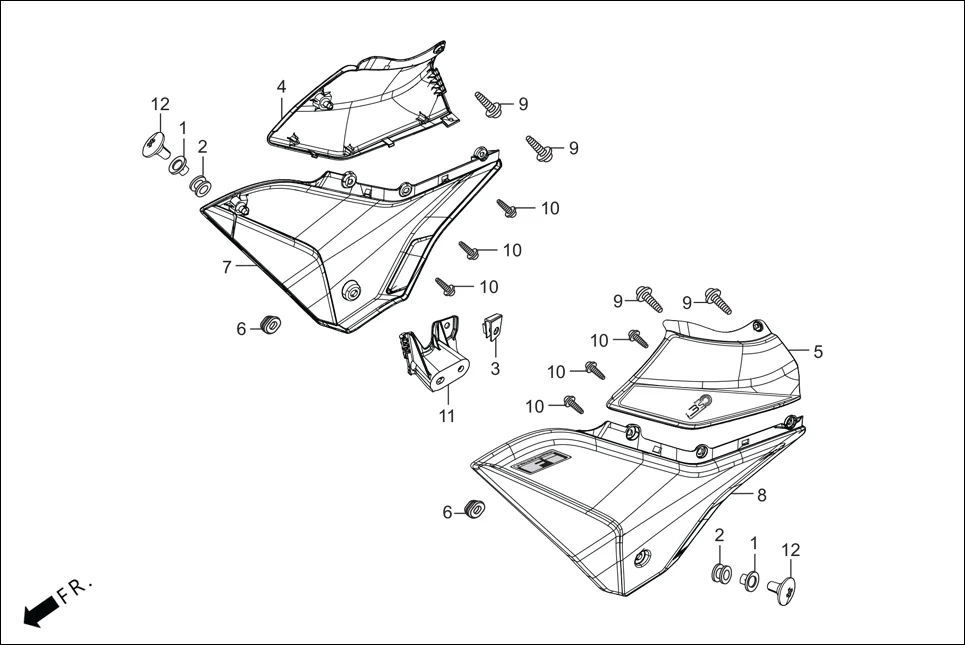

F-14 - SIDE COVER
Hero Passion Pro BSVI (Jan, 2021) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 3 | 90311-KVH-900 | NUT CLIP 6 MM | 1 | |
| 4 | 83500-AAC-C00R | SET COVER CENTRE RH. (PRIME RED (RD(BR)-016M(G)) | 1 | |
| 5 | 83600-AAC-C00R | SET COVER CENTRE LH. (PRIME RED (RD(BR)-016M(G)) | 1 | |
| 7 | 83550-AAC-800 | COVER SIDE RIGHT | 1 | |
| 8 | 83650-AAC-800 | COVER SIDE LEFT | 1 | |
| 10 | 93903-34310 | SCREW TAPPING M4X12 | 6 | |
| 11 | 83594-AAF-400 | SIDE COVER SUPPORT R | 1 | |
| 12 | 90381-AAF-400 | SPECIAL SCREW 6X20 | 2 | |
