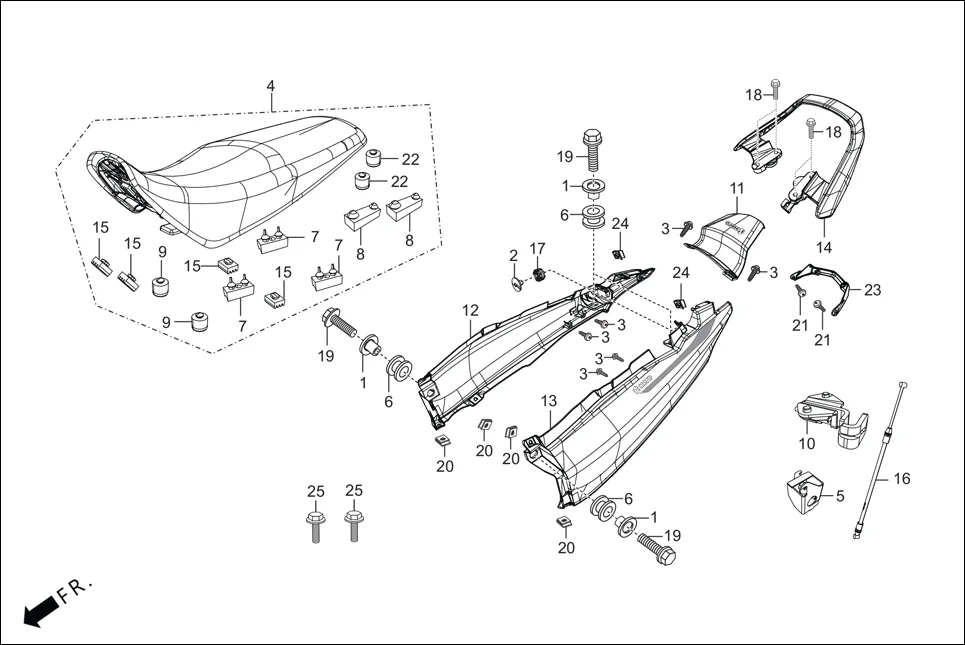

F-12 - SEAT ASSY./REAR COWL/GRIP REAR
Hero Passion Pro BSVI (Jan, 2021) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17509-398-960 | COLLAR, TANK SET | 4 | |
| 2 | 61104-KM7-910 | COLLAR,FAIRING | 2 | |
| 3 | 90101-GE0-000 | SCREW, HINGE PATCH | 6 | |
| 4 | 77200-AAC-C00 | SEAT COMP., DOUBLE | 1 | |
| 5 | 77244-AAF-400 | STAY SEAT LOCK CABLE | 1 | |
| 6 | 77202-KCC-900 | RUBBER, SEAT MOUNTING | 4 | |
| 7 | 77204-AAR-000 | CUSHION RUBBER RIDER SEAT | 3 | |
| 8 | 77205-KTN-700 | RUBBER B, SEAT SETTING | 2 | |
| 9 | 77206-KTR-900 | RUBBER, SEAT CUSHION | 2 | |
| 10 | 77220-AAC-800 | HOOK SEAT CATCH | 1 | |
| 11 | 77230-AAC-C00S | SET RR CENTER COWL (PRIME WHITE WH-005P(G)) | 1 | |
| 12 | 77240-AAC-C00R | SET REAR COWL RH (PRIME RED (RD(BR)-016M(G)) | 1 | |
| 13 | 77250-AAC-C00R | SET REAR COWL LH (PRIME RED (RD(BR)-016M(G)) | 1 | |
| 14 | 50400-AAC-C00R | GRIP REAR | 1 | |
| 15 | 50524-001-000 | RUBBER, MAIN STAND STOPPER | 4 | |
| 16 | 77156-AAC-800 | CABLE SEAT LOCK | 1 | |
| 17 | 33705-KW7-900 | RUBBER A TAIL LIGHT MOUNT | 2 | |
| 18 | 95701-08030-07 | BOLT, FLANGE 8X30 | 4 | |
| 19 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 4 | |
| 21 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
| 22 | 77206-KCC-900 | RUBBER, SEAT CUSHION | 2 | |
| 23 | 77266-AAC-800 | COWL RR UNDER | 1 | |
| 24 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 25 | 92000-05022-0A | BOLT, HEX, 5X22 | 2 | |
