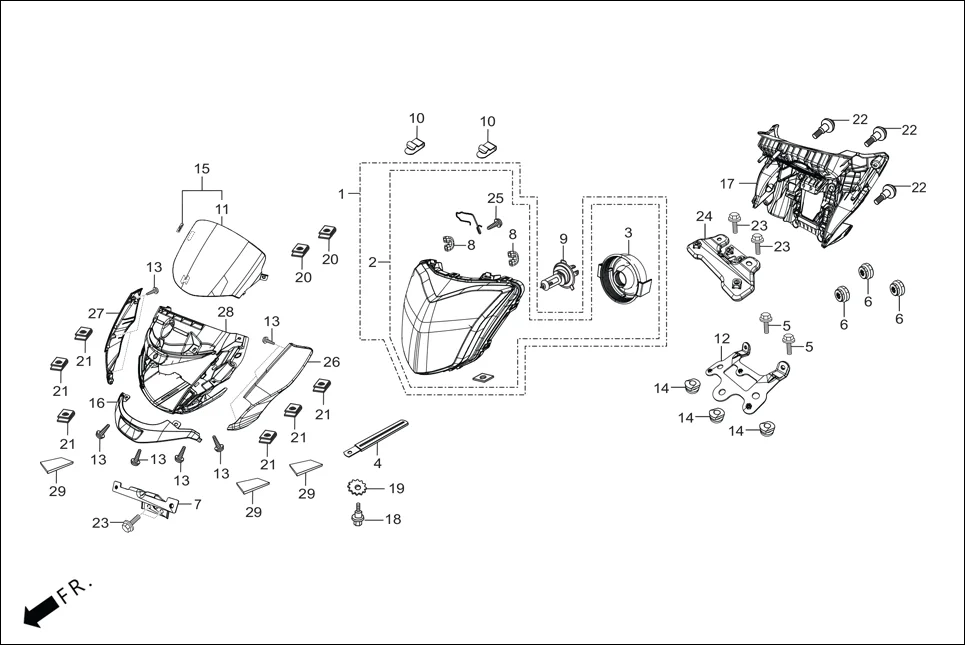

F-1-DISC - HEAD LIGHT
Hero Passion Pro BSVI (Jan, 2021) · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3310B-AAC-80099 | LIGHT ASSY HEAD | 1 | |
| 2 | 3311B-AAC-80099 | UNIT, HEAD LIGHT | 1 | |
| 3 | 33126-AAC-80099 | COVER RUBBER | 1 | |
| 4 | 91410-ABW-000 | CLIP 3X130 | 1 | |
| 5 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 6 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 3 | |
| 7 | 64315-AAC-800 | NUMBER PLATE STAY FRONT | 1 | |
| 8 | 33706-ABA-000 | PIPE CP | 2 | |
| 9 | 34901-KSP-910 | BULB, HEAD LIGHT | 1 | |
| 10 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 11 | 64100-AAC-800 | SET ILLUST WIND SCREEN | 1 | |
| 12 | 61312-AAC-800 | STAY METER MTG. | 1 | |
| 13 | 93903-34380 | SCREW, TAPPING, 4X12 | 10 | |
| 14 | 61315-AAF-400 | RUBBER STAY METER MTG. | 3 | |
| 15 | 6410A-AAC-800 | WIND SCREEN SUB ASSY | 1 | |
| 16 | 61325-AAC-800 | BEZEL, FR COWL | 1 | |
| 17 | 8340B-AAC-800 | PANEL INNER SUB ASSY | 1 | |
| 18 | 90101-GJ6-000 | BOLT, ADJUST | 1 | |
| 19 | 90307-GJ6-000 | WASHER, LOCK, 6 MM | 1 | |
| 20 | 90311-MT3-000 | NUT, CLIP, 6 MM | 2 | |
| 21 | 90320-GC3-000 | NUT, SPRING, M5 | 6 | |
| 22 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 3 | |
| 23 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 4 | |
| 24 | 64311-AAF-400 | BRKT FR. COWL SUB ASSY | 1 | |
| 25 | 93903-34110 | SCREW, TAPPING, 4 X 8. | 1 | |
| 26 | 61323-AAC-C00R | SIDE COVER L. FR. COWL (PRIME RED (RD(BR)-016M(G)) | 1 | |
| 27 | 61322-AAC-C00R | SIDE COVER .R FR. COWL (PRIME RED (RD(BR)-016M(G)) | 1 | |
| 28 | 61301-AAC-800 | COWL FRONT | 1 | |
| 29 | 77232-KVE-900 | CUSHION COWL CENTER B. | 3 | |
