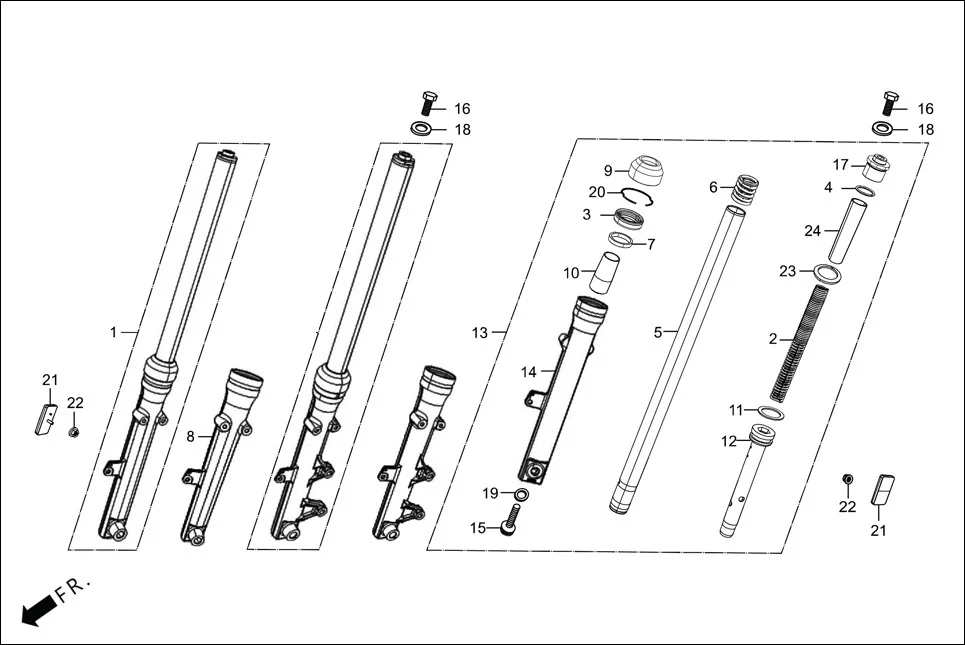

F-7-DRUM - FRONT FORK
Hero Passion Pro(March,2023) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-AAC-J00 | FORK ASSY., R. FRONT | 1 | |
| 2 | 51401-KST-941 | SPRING, FR. CUSHION | 2 | |
| 3 | 91255-169-000R | OIL SEAL, 30 X 42 X 11 | 2 | |
| 4 | 91356-KAG-900 | O - RING | 2 | |
| 5 | 51410-KWA-941 | PIPE COMP. FR. FORK | 2 | |
| 6 | 51412-KAG-900 | SPRING, REBOUND | 2 | |
| 7 | 51412-KWA-941 | RING BACKUP | 2 | |
| 8 | 51420-AAC-800 | CASE,COMP. R. FR. BOTTOM | 1 | |
| 9 | 51425-KST-901 | SEAL, DUST | 2 | |
| 10 | 51432-KST-901 | PIECE, OIL LOCK | 2 | |
| 11 | 51437-KVN-901 | RING, PISTON | 2 | |
| 12 | 51440-KTR-901 | PIPE, SEAT | 2 | |
| 13 | 51500-AAC-J00 | FORK ASSY L FRONT | 1 | |
| 14 | 51520-AAC-800 | CASE, COMP., L. FR. BOTTOM | 1 | |
| 15 | 90116-KAG-900 | BOLT, SOCKET, 8 MM | 2 | |
| 16 | 90123-KRM-860 | BOLT, FR. FORK | 2 | |
| 17 | 90123-KST-941 | BOLT, A FR. FORK | 2 | |
| 18 | 90521-292-000 | WASHER, PLAIN, 10.3 MM | 2 | |
| 19 | 90544-439-930 | WASHER, SPECIAL, 8 MM | 2 | |
| 20 | 90601-GF5-730 | RING, OIL SEAL STOPPER | 2 | |
| 21 | 33740-AAB-000 | REFLEX REFLECTOR FRONT | 2 | |
| 22 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 23 | 51403-447-730 | JOINT, SPRING | 2 | |
| 24 | 51403-KCC-900 | COLLAR, SPRING | 2 | |
