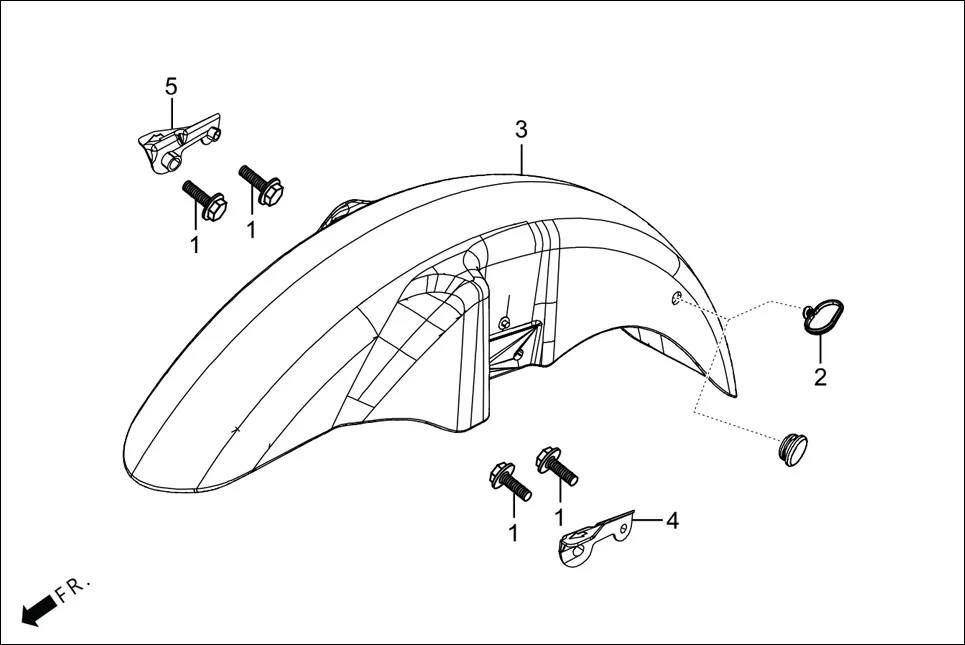

F-6-WT-DRUM - FRONT FENDER
Hero Passion Pro(March,2023) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 2 | 45451-AAF-400 | GUIDE, FR. (FENDER) CABLE | 1 | |
| 3 | 61100-AAC-B00R | SET FR FENDER (CANDY BLAZING RED (R-195C)) | 1 | |
| 3 | 61100-AAC-800Y | FENDER COMP., FR. (BLACK NH-1) | 1 | |
| 3 | 61100-AAC-800Z | FENDER COMP FR(MAT AXIS GRAY METALLIC) | 1 | |
| 4 | 61104-KST-940 | COLLER, FR. FENDER L | 1 | |
| 5 | 61103-KST-940 | COLLER, FR. FENDER R | 1 | |
