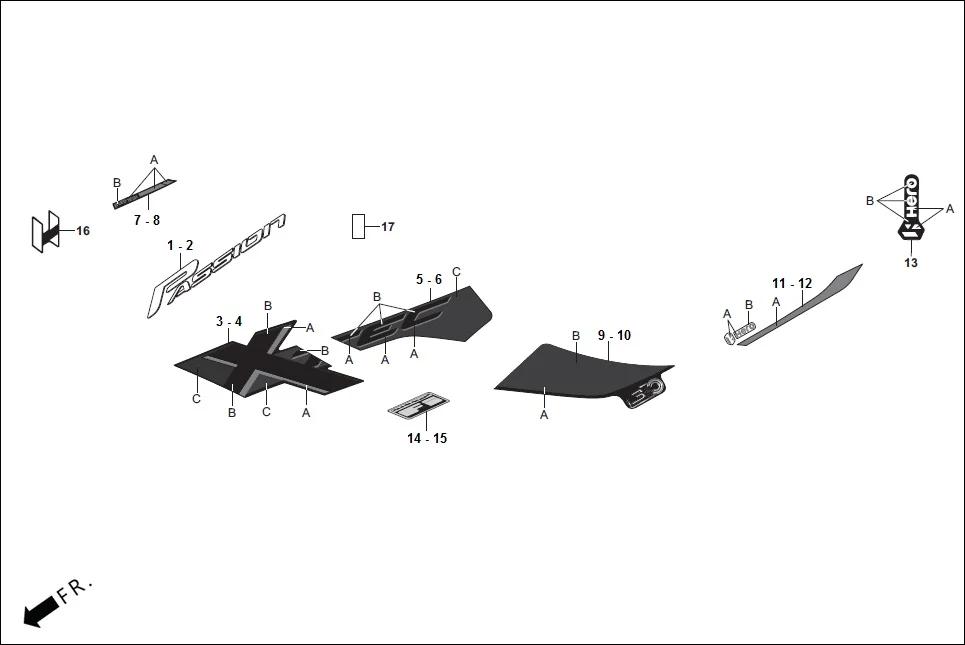

F-27 - STRIPES/MARKS
Hero Passion Pro(March,2023) · 49 parts
Parts in This Assembly (49)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64222-AAC-B00 | EMBLEM R SHROUD | 1 | |
| 2 | 64223-AAC-B00 | EMBLEM L SHROUD | 1 | |
| 3 | 86273-AAC-B00R | STRIPE SHROUD RH. (TYPE-1) | 1 | |
| 3 | 86273-AAC-B00S | STRIPE SHROUD RH. (TYPE-2) | 1 | |
| 3 | 86273-AAC-B00T | STRIPE SHROUD RH. (TYPE-3) | 1 | |
| 3 | 86273-AAC-G70Z | STRIPE SHROUD RH (TYPE-1) | 1 | |
| 4 | 86274-AAC-B00R | STRIPE SHROUD LH (TYPE-1) | 1 | |
| 4 | 86274-AAC-B00S | STRIPE SHROUD LH (TYPE-2) | 1 | |
| 4 | 86274-AAC-B00T | STRIPE SHROUD LH (TYPE-3) | 1 | |
| 4 | 86274-AAC-G70Z | STRIPE SHROUD LH (TYPE-1) | 1 | |
| 5 | 86275-AAC-B00R | STRIPE A, R FUEL TANK (TYPE-1) | 1 | |
| 5 | 86275-AAC-B00S | STRIPE A, R FUEL TANK (TYPE-2) | 1 | |
| 5 | 86275-AAC-B00T | STRIPE A, R FUEL TANK (TYPE-3) | 1 | |
| 5 | 86275-AAC-G70Z | STRIPE A, R FUEL TANK (TYPE-1) | 1 | |
| 6 | 86276-AAC-B00R | STRIPE A, L FUEL TANK (TYPE-1) | 1 | |
| 6 | 86276-AAC-B00S | STRIPE A, L FUEL TANK (TYPE-2) | 1 | |
| 6 | 86276-AAC-B00T | STRIPE A, L FUEL TANK (TYPE-3) | 1 | |
| 6 | 86276-AAC-G70Z | STRIPE A, L FUEL TANK (TYPE-1) | 1 | |
| 7 | 86291-AAC-B00R | STRIPE R FR COWL (TYPE-1) | 1 | |
| 7 | 86291-AAC-B00S | STRIPE R FR COWL (TYPE-2) | 1 | |
| 7 | 86291-AAC-B00T | STRIPE R FR COWL (TYPE-3) | 1 | |
| 7 | 86291-AAC-B00Z | STRIPE R FR COWL (TYPE-4) | 1 | |
| 8 | 86292-AAC-B00R | STRIPE L FR COWL (TYPE-1) | 1 | |
| 8 | 86292-AAC-B00S | STRIPE L FR COWL (TYPE-2) | 1 | |
| 8 | 86292-AAC-B00T | STRIPE L FR COWL (TYPE-3) | 1 | |
| 8 | 86292-AAC-B00Z | STRIPE L FR COWL (TYPE-4) | 1 | |
| 9 | 86279-AAC-B00R | STRIPE COVER CENTER RH (TYPE-1) | 1 | |
| 9 | 86279-AAC-B00S | STRIPE COVER CENTER RH (TYPE-2) | 1 | |
| 9 | 86279-AAC-B00T | STRIPE COVER CENTER RH (TYPE-3) | 1 | |
| 9 | 86279-AAC-B00Z | STRIPE COVER CENTER RH (TYPE-4) | 1 | |
| 10 | 86280-AAC-B00R | STRIPE COVER CENTRE LH (TYPE-1) | 1 | |
| 10 | 86280-AAC-B00S | STRIPE COVER CENTRE LH (TYPE-2) | 1 | |
| 10 | 86280-AAC-B00Z | STRIPE COVER CENTRE LH (TYPE-3) | 1 | |
| 11 | 86281-AAC-B00R | STRIPE REAR COWL RH (TYPE-1) | 1 | |
| 11 | 86281-AAC-B00S | STRIPE REAR COWL RH (TYPE-2) | 1 | |
| 11 | 86281-AAC-B00T | STRIPE REAR COWL RH (TYPE-3) | 1 | |
| 11 | 86281-AAC-B00Z | STRIPE REAR COWL RH (TYPE-4) | 1 | |
| 12 | 86282-AAC-B00R | STRIPE REAR COWL LH (TYPE-1) | 1 | |
| 12 | 86282-AAC-B00S | STRIPE REAR COWL LH (TYPE-2) | 1 | |
| 12 | 86282-AAC-B00T | STRIPE REAR COWL LH (TYPE-3) | 1 | |
| 12 | 86282-AAC-B00Z | STRIPE REAR COWL LH (TYPE-4) | 1 | |
| 13 | 77238-AAC-B00R | H HERO MARK CENTER RR COWL (TYPE-1) | 1 | |
| 13 | 77238-AAC-B00S | H HERO MARK CENTER RR COWL (TYPE-2) | 1 | |
| 13 | 77238-AAC-B00T | H HERO MARK CENTER RR COWL (TYPE-3) | 1 | |
| 13 | 77238-AAC-B00Z | H HERO MARK CENTER RR COWL (TYPE-4) | 1 | |
| 14 | 85401-AAW-A00 | PROGRAMMED FI MARK | 1 | |
| 15 | 85404-AAC-800 | PROGRAMMED FI MARK LEFT | 1 | |
| 16 | 86830-ABW-800 | EMBLEM WINDSCREEN SUB. ASSY. | 1 | |
| 17 | 87118-AAC-G70 | EMBLEM 2 CR | 1 | |
