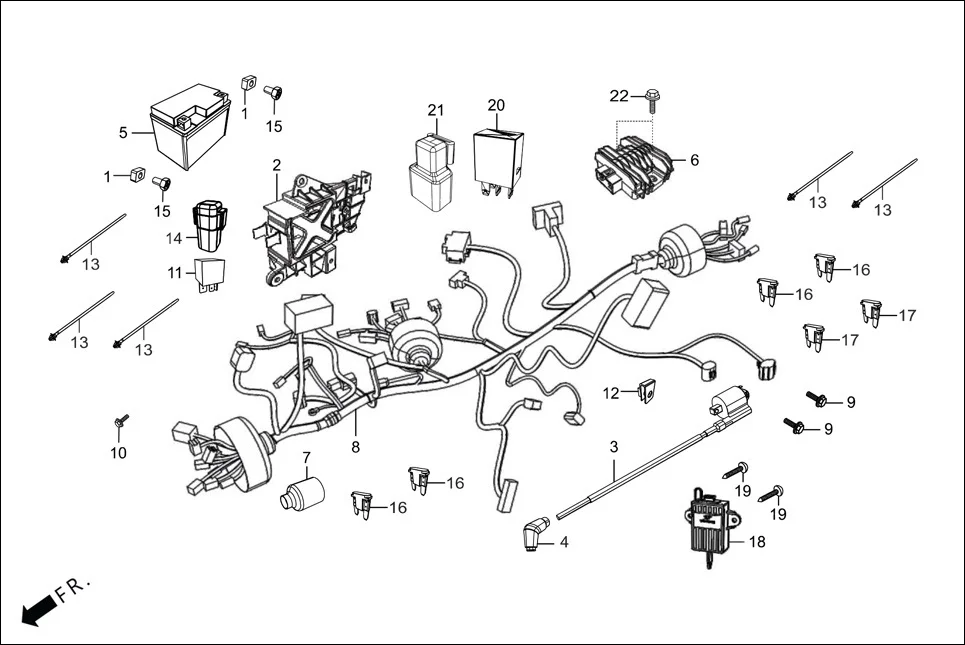

F-24 - WIRE HARNESS/BATTERY
Hero Passion Pro(March,2023) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 90306-KRY-971 | NUT, BATTERY TERMINAL | 2 | |
| 2 | 17232-AAF-400 | BOX BATTERY | 1 | |
| 3 | 30510-AAF-401 | COIL COMP IGNITION. | 1 | |
| 3 | 30510-AAC-801 | COIL COMP IGNITION | 1 | |
| 4 | 30700-AAE-30099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 4 | 30700-KTC-A21 | CAP ASSY., NOISE SUPRESSOR | 1 | |
| 5 | 31500-KVT-801 | BATTERY, ASSY. | 1 | |
| 5 | 31500-AAN-L01 | BATTERY ASSY 3AH | 1 | |
| 6 | 31600-AAC-B02 | REG RECT COMP | 1 | |
| 7 | 32108-GW6-700 | COVER ,CONNECTOR | 1 | |
| 8 | 32100-AAC-G50 | HARNESS WIRE | 1 | |
| 9 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 10 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 11 | 38501-AAW-30099 | RELAY COMP. START | 1 | |
| 12 | 90311-KVH-900 | NUT CLIP 6 MM | 1 | |
| 13 | 91540-AAN-410 | CLIP, BAND HARN | 5 | |
| 14 | 38506-AAC-800 | SUSPENSION START RELAY | 1 | |
| 15 | 90122-KRY-971 | BOLT, BATTERY TERMINAL | 2 | |
| 16 | 98210-HMC-000 | MINI FUSE 10A | 4 | |
| 17 | 98215-HMC-000 | MINI FUSE 15A | 2 | |
| 18 | 31300-AAC-C0099 | USB CHARGER ASSY | 1 | |
| 19 | 93903-34310 | SCREW TAPPING M4X12 | 2 | |
| 20 | 38551-AAW-501 | RELAY COMP. POWER (MICRO ISO 4P) | 1 | |
| 21 | 38506-KSP-910 | SUS., POWER RELAY | 1 | |
| 22 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
