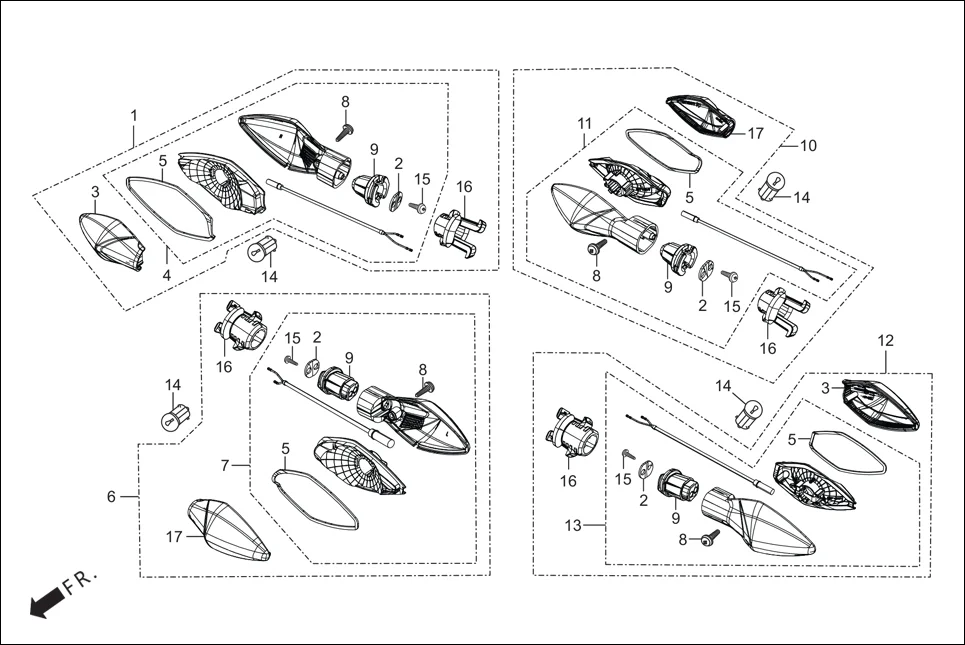

F-22 - WINKER
Hero Passion Pro(March,2023) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3340B-AAC-80099 | WINKER ASSY. R. FR. | 1 | |
| 2 | 33493-AAF-401 | BRACKET | 4 | |
| 3 | 33402-AAC-80099 | LENS R | 2 | |
| 4 | 33405-AAC-80099 | REFLECTOR COMP. R. | 1 | |
| 5 | 33408-AAF-401 | PACKING | 4 | |
| 6 | 3345B-AAC-80099 | WINKER ASSY L FR. | 1 | |
| 7 | 33455-AAC-80099 | REFLECTOR COMP. L. | 1 | |
| 8 | 93901-AAR-001 | ST. SCREW 3X10 | 4 | |
| 9 | 33491-AAF-401 | STAY WINKER | 4 | |
| 10 | 3360B-AAC-80099 | WINKER ASSY R RR | 1 | |
| 11 | 33605-AAC-80099 | REFLECTOR COMP. R. | 1 | |
| 12 | 3365B-AAC-80099 | WINKER ASSY. L. RR. | 1 | |
| 13 | 33655-AAC-80099 | REFLECTOR COMP. L | 1 | |
| 14 | 34930-AAC-700 | BULB(12V 10W) AMBER | 4 | |
| 15 | 90380-AAR-001 | SCREW SPECIAL | 4 | |
| 16 | 33492-AAF-401 | LOCATING CAP | 4 | |
| 17 | 33452-AAC-80099 | LENS L | 2 | |
