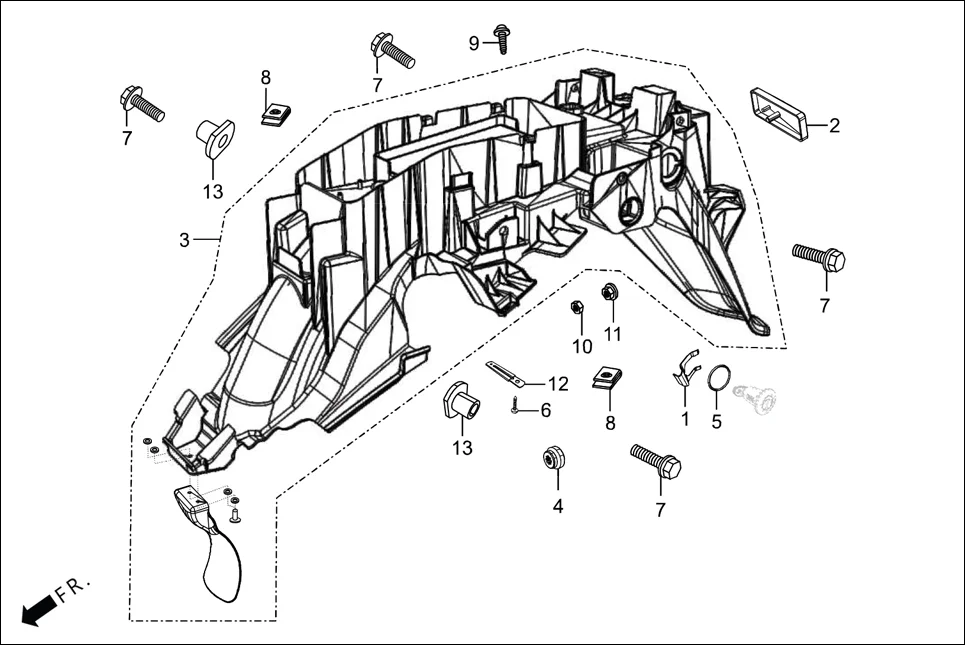

F-21 - REAR FENDER
Hero Passion Pro(March,2023) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75581-AAC-800 | SET SPRING LOCK KEY | 1 | |
| 2 | 33741-KST-920 | REFLEX REFLECTOR | 1 | |
| 3 | 80100-AAC-800 | FENDER COMP., RR. | 1 | |
| 5 | 80123-KCC-870 | BAND, TOOL | 1 | |
| 10 | 94002-06000-0S | NUT, HEX 6MM | 1 | |
| 12 | 94591-27000 | CLIP 2 X 70 | 1 | |
| 13 | 90311-AAA-000 | NUT REAR FENDER | 2 | |
