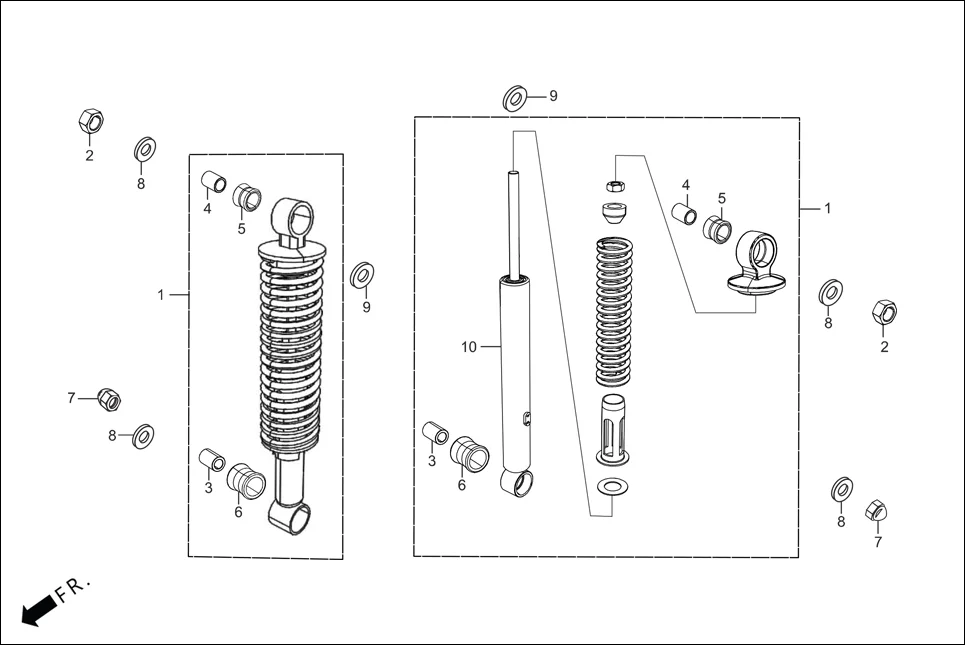

F-20 - REAR CUSHION
Hero Passion Pro(March,2023) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-KWA-90099 | CUSHION ASSY REAR | 2 | |
| 2 | 94001-10000-0S | NUT, HEX., 10 MM | 2 | |
| 3 | 52486-KAG-900 | COLLAR ,RUBBER BUSH (UNDER) | 2 | |
| 4 | 52486-KTN-701 | COLLAR, RUBBER BUSH (UPPER) | 2 | |
| 5 | 52489-399-600 | BUSH ,RUBBER (UPPER) | 2 | |
| 6 | 52495-098-000 | BUSH, RUBBER (UNDER) | 2 | |
| 7 | 94021-10000-0S | NUT, HEX., CAP, 10MM | 2 | |
| 8 | 90551-178-000 | WASHER,SPL., 10MM | 4 | |
| 9 | 94101-12000 | WASHER, PLAIN, 12MM | 2 | |
| 10 | 52410-KCC-871 | DAMPER COMP., REAR | 2 | |
