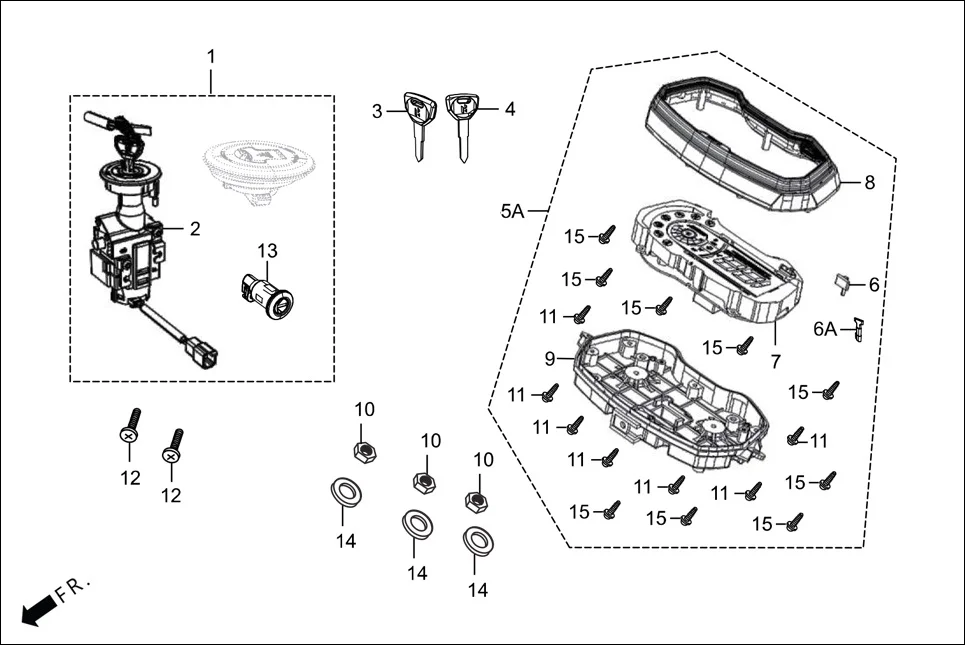

F-2-WT-DISC - SPEEDOMETER/CABLE/KEY SET
Hero Passion Pro(March,2023) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 5 | 37100-AAC-G60099 | METER ASSY COMB | 1 | |
| 6 | 37102-AAC-B02 | KEY TOP | 1 | |
| 6 | 37202-AAC-B01 | KEY TOP | 1 | |
| 8 | 37111-AAC-B11 | UPPER CASE ASSY | 1 | |
| 8 | 37111-AAC-B12 | UPPER CASE ASSY | 1 | |
| 9 | 37112-AAC-B01 | LOWER CASE ASSY | 1 | |
| 9 | 37112-AAC-B02 | LOWER CASE ASSY | 1 | |
