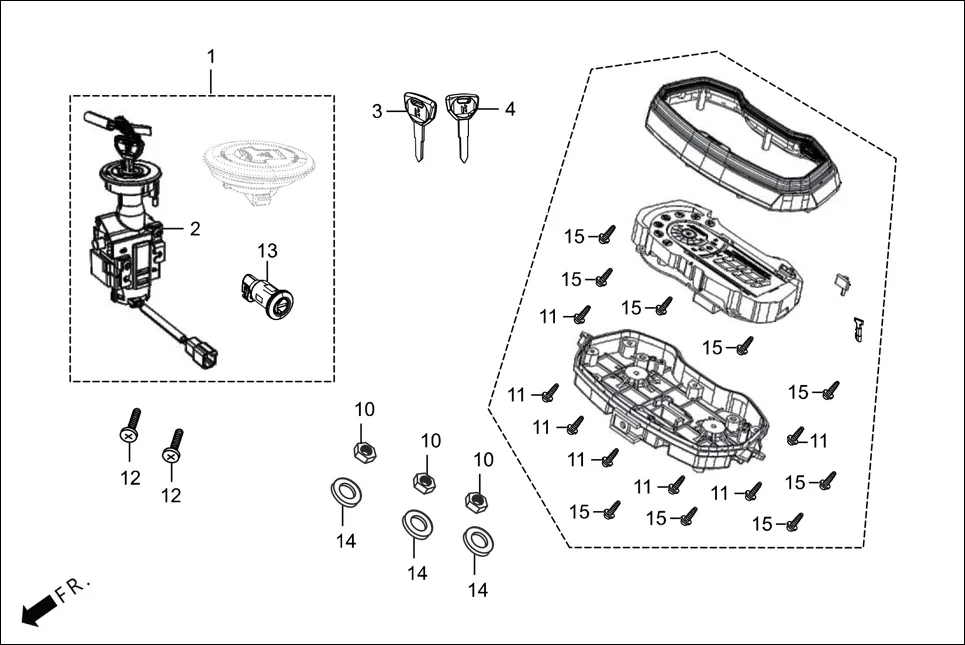

F-2-WO-T - SPEEDOMETER/CABLE/KEY SET
Hero Passion Pro(March,2023) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-AAC-G70099 | KEY SET | 1 | |
| 2 | 35100-ACL-D0099 | SWITCH ASSY., COMB & LOCK | 1 | |
| 3 | 35121-AAC-801 | KEY BLANK NO.1 | 1 | |
| 4 | 35122-AAC-801 | KEY BLANK NO.2 | 1 | |
| 10 | 94001-06070-0S | NUT, HEX., 6 MM | 3 | |
| 11 | 93903-22480 | SCREW TAPPING 3 X 16 | 7 | |
| 12 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 13 | 77239-AAC-801 | KEY SEAT LOCK | 1 | |
| 13 | 77239-AAF-401 | KEY SEAT LOCK | 1 | |
| 14 | 94103-06700 | WASHER, PLAIN, 6 MM | 3 | |
| 15 | 37203-KWA-831 | SCREW TAPPING 3X14 | 9 | |
