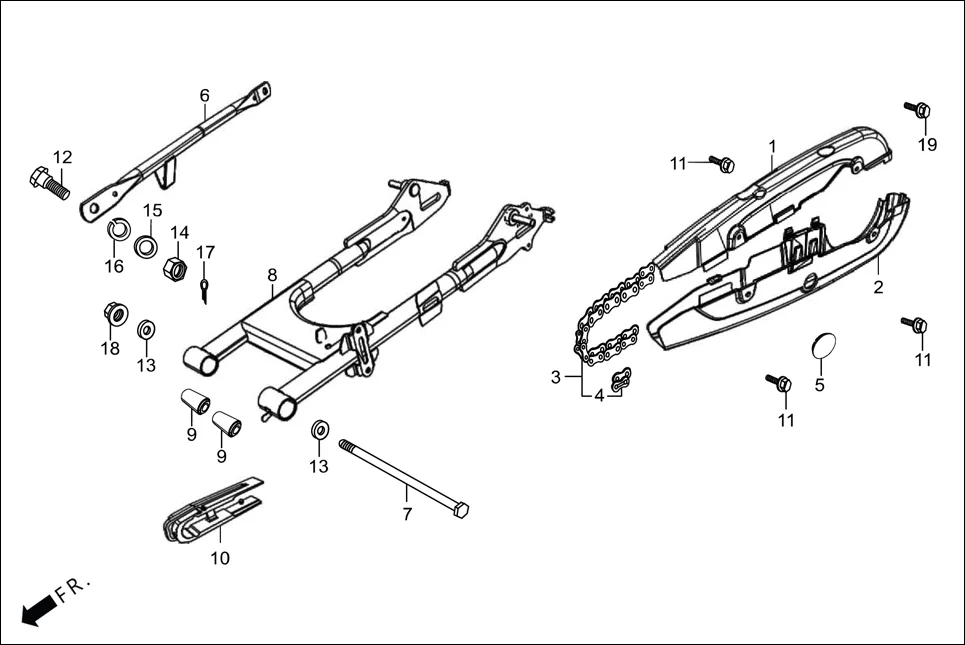

F-19 - REAR FORK/CHAIN CASE
Hero Passion Pro(March,2023) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-AAF-400 | CASE UP HALF DRIVE CHAIN | 1 | |
| 2 | 4052A-AAF-400 | CHAIN CASE UND HALF SUB ASSY | 1 | |
| 3 | 40530-AAF-40099 | CHAIN DRIVE (TIDC) | 1 | |
| 4 | 40531-AAF-400 | JOINT, RJ DRIVE CHAIN | 1 | |
| 5 | 40545-ABA-000 | CAP, CHAIN PEEP HOLE | 1 | |
| 6 | 43432-AAF-400 | ARM SUB ASSY BRAKE STOPPER | 1 | |
| 7 | 52101-KST-940 | BOLT, SWING ARM PIVOT | 1 | |
| 8 | 52110-AAF-400 | SWINGARM COMP., RR. | 1 | |
| 9 | 52147-AAF-400 | RUBBER BUSH SWINGARM PIVOT | 2 | |
| 10 | 52170-AAF-400 | SLIDER, CHAIN | 1 | |
| 12 | 90133-331-770 | BOLT, HEX., 8MM | 1 | |
| 13 | 90183-KTC-900 | WASHER, SPL., 12 MM | 2 | |
| 16 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
