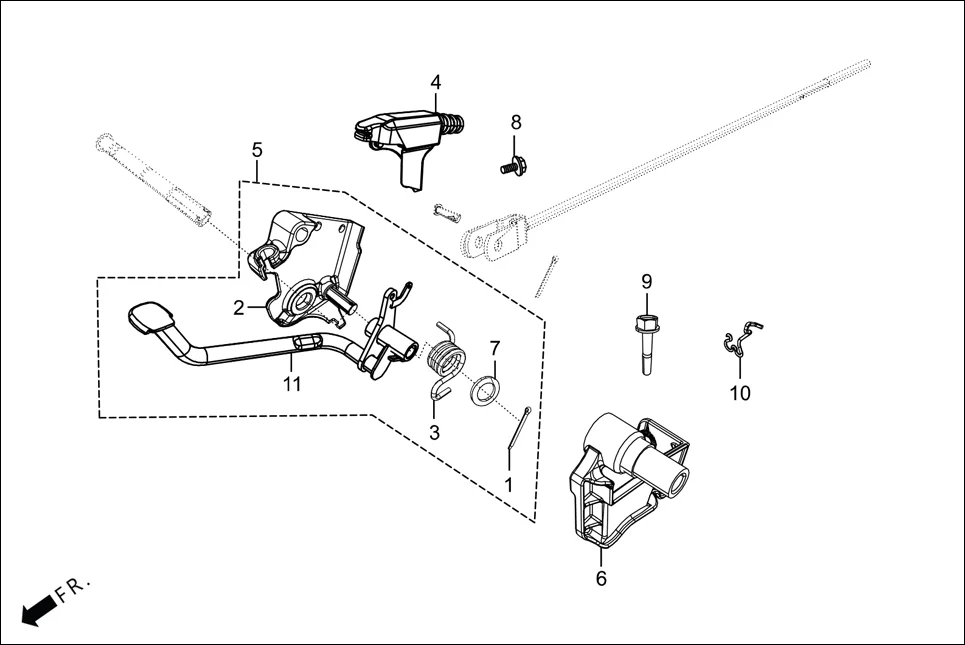

F-18A-DRUM - CBS ASSY.(DRUM)
Hero Passion Pro(March,2023) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 2 | 46513-AAG-900 | CASING CBS | 1 | |
| 3 | 46515-AAH-F00 | SPRING LEVER DELAY | 1 | |
| 4 | 46519-AAC-B00 | CBS DUST BOOT | 1 | |
| 5 | 46544-AAC-B00 | RR BRAKE PEDAL AND ROD SUB ASSY | 1 | |
| 6 | 46522-AAF-400 | CBS COVER ASSY | 1 | |
| 7 | 90545-AAH-F00 | WASHER CASING PIVOT | 1 | |
| 8 | 95701-06008-00 | BOLT, FLANGE, 6X8 | 1 | |
| 9 | 95801-08095-00 | BOLT, FLANGE, 8 X 95 | 1 | |
| 10 | 50168-AAF-400 | CBS CABLE GUIDE CLIP | 1 | |
| 11 | 46500-AAC-B10 | PEDAL BRAKE | 1 | |
