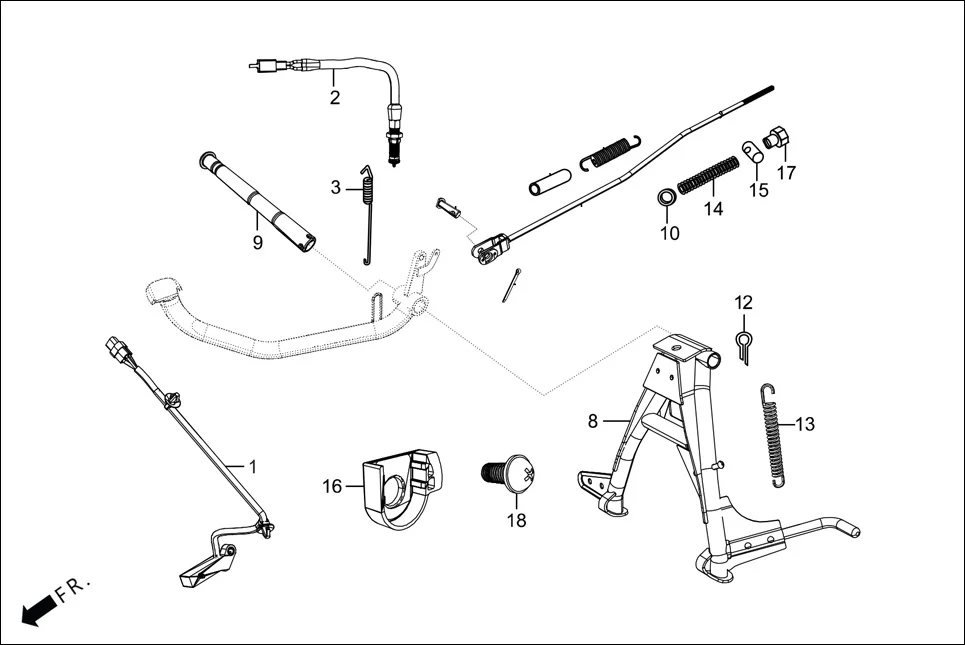

F-18-WO-T - MAIN STAND/PEDAL BRAKE
Hero Passion Pro(March,2023) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35140-ACL-D0099 | SENSOR ASSY SIDE STAND | 1 | |
| 2 | 35350-KWA-940 | SWITCH ASSY., REAR STOP (SELF) | 1 | |
| 3 | 35357-AAF-400 | SPRING, STOP SWITCH | 1 | |
| 9 | 50512-AAF-400 | PIPE, RR. BRAKE PIVOT | 1 | |
| 10 | 90502-198-900 | WASHER , BRAKE ROD | 1 | |
| 12 | 94201-30250 | PIN, SPLIT, 3.0 X 25 | 1 | |
| 13 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 14 | 95014-73100 | SPRING A BRAKE ROD | 1 | |
| 15 | 95015-32001 | JOINT B BRAKE ARM | 1 | |
| 16 | 35130-ABH-501 | MAGNET HOLDER | 1 | |
| 16 | 35130-ABH-502 | MAGNET HOLDER ASSY. | 1 | |
| 17 | 95015-42000 | NUT B ADJUST | 1 | |
| 18 | 93891-05014-10 | SCREW WASH,5X14 | 1 | |
