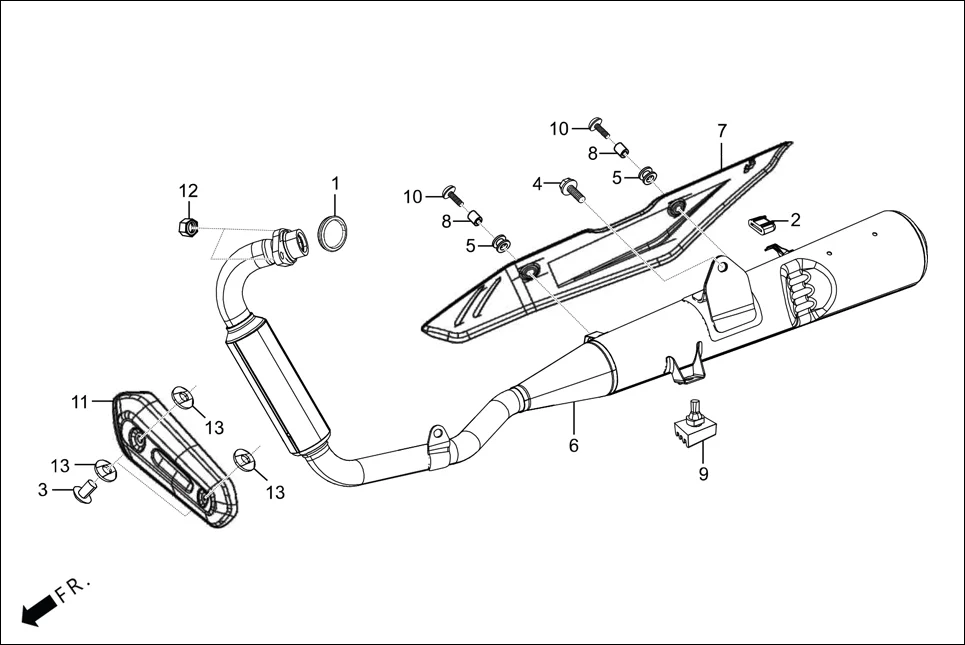

F-16 - MUFFLER
Hero Passion Pro(March,2023) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18291-KTR-A00 | GASKET, EXHAUST PIPE | 1 | |
| 2 | 18293-KPK-900 | RUBBER, PKG. PROTECTOR | 1 | |
| 3 | 96001-06012-02 | BOLT FLANGE 6X12 | 2 | |
| 4 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 1 | |
| 5 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 6 | 18350-AAC-J00 | MUFFLER COMP EXH | 1 | |
| 7 | 18355-AAC-800 | COVER, MUFFLER | 1 | |
| 8 | 33619-459-840A | COLLAR,WINKER STAY | 2 | |
| 9 | 50505-KCC-900 | STOPPER RUBBER, A STAND | 1 | |
| 10 | 90107-KAN-900 | BOLT, BODY COVER SET | 2 | |
| 11 | 18331-AAF-400 | COVER CAT PROTECTOR | 1 | |
| 12 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 13 | 18292-KTP-900 | PACKING, PROTECTOR | 4 | |
