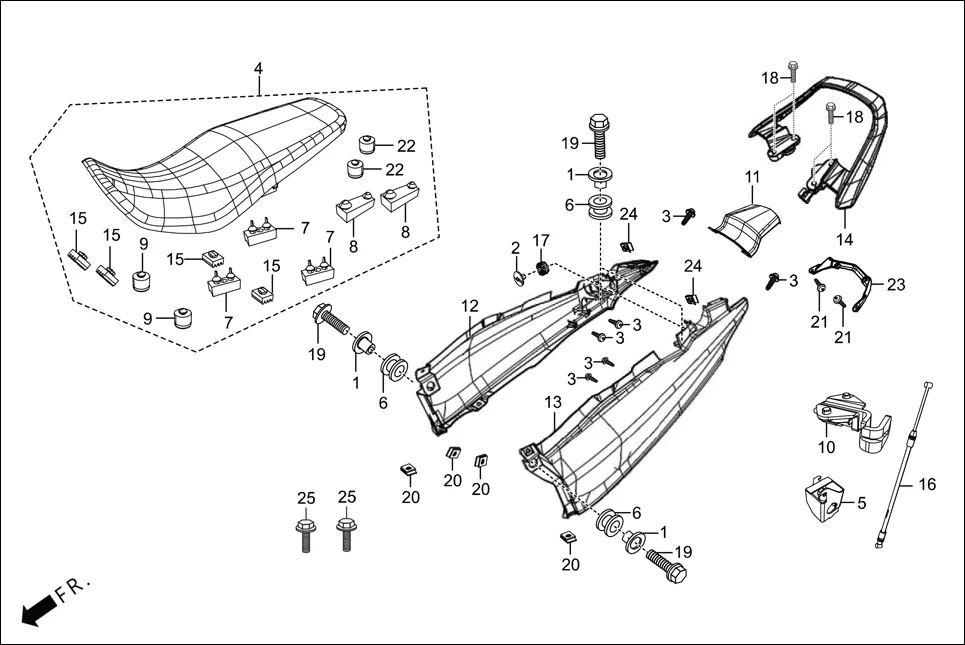

F-12-WT-DISC - SEAT ASSY./REAR COWL/GRIP REAR

Hero Passion Pro(March,2023) · 35 parts

Parts in This Assembly (35)

Ref #	Part Number	Description	Qty
1	17509-398-960	COLLAR, TANK SET	4
2	61104-KM7-910	COLLAR,FAIRING	2
3	90101-GE0-000	SCREW, HINGE PATCH	6
4	77200-AAC-800	SEAT COMP., DOUBLE	1
4	77200-AAC-B00	SEAT COMP., DOUBLE	1
5	77244-AAF-400	STAY SEAT LOCK CABLE	1
6	77202-KCC-900	RUBBER, SEAT MOUNTING	4
7	77204-AAR-000	CUSHION RUBBER RIDER SEAT	3
8	77205-KTN-700	RUBBER B, SEAT SETTING	2
9	77206-KTR-900	RUBBER, SEAT CUSHION	2
10	77220-AAC-800	HOOK SEAT CATCH	1
11	77230-AAC-B00R	SET RR CENTER COWL (CANDY BLAZING RED (R-195C))	1
11	77230-AAC-B00S	SET RR CENTER COWL (BLACK NH-1 (TYPE-1))	1
11	77230-AAC-B00T	SET RR CENTER COWL (BLACK NH-1 (TYPE-2))	1
11	77230-AAC-B00Z	SET RR CENTER COWL (MAT AXIS GRAY METALLIC)	1
12	77240-AAC-B00R	SET REAR COWL RH (CANDY BLAZING RED (R-195C))	1
12	77240-AAC-B00S	SET REAR COWL RH (BLACK NH-1 (TYPE-1))	1
12	77240-AAC-B00T	SET REAR COWL RH (BLACK NH-1 (TYPE-2))	1
12	77240-AAC-B00Z	SET REAR COWL RH (MAT AXIS GRAY METALLIC)	1
13	77250-AAC-B00R	SET REAR COWL LH (CANDY BLAZING RED (R-195C))	1
13	77250-AAC-B00S	SET REAR COWL LH (BLACK NH-1 (TYPE-1))	1
13	77250-AAC-B00T	SET REAR COWL LH (BLACK NH-1 (TYPE-2))	1
13	77250-AAC-B00Z	SET REAR COWL LH (MAT AXIS GRAY METALLIC)	1
14	50400-AAC-800Y	GRIP REAR	1
15	50524-001-000	RUBBER, MAIN STAND STOPPER	4
16	77156-AAC-800	CABLE SEAT LOCK	1
17	33705-KW7-900	RUBBER A TAIL LIGHT MOUNT	2
18	95701-08030-07	BOLT, FLANGE 8X30	4
19	95701-06025-00	BOLT, FLANGE, 6X 25	4
20	90320-GC3-000	NUT, SPRING, M5	4
21	93903-35280	SCREW, TAPPING, 5 X 12	2
22	77206-KCC-900	RUBBER, SEAT CUSHION	2
23	77266-AAC-800	COWL RR UNDER	1
24	90677-KAN-961	NUT CLIP 5MM	2
25	92000-05022-0A	BOLT, HEX, 5X22	2
