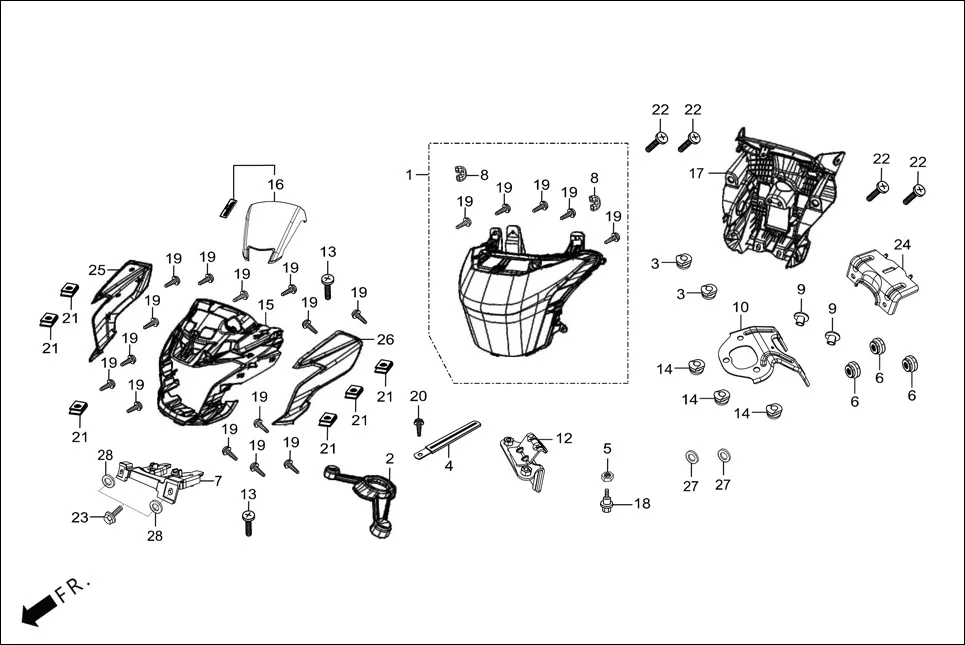

F-1-WT-DRUM - HEAD LIGHT
Hero Passion Pro(March,2023) · 34 parts
Parts in This Assembly (34)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-AAC-B01 | LIGHT ASSY HEAD | 1 | |
| 1 | 33100-AAC-B02 | LIGHT ASSY HEAD | 1 | |
| 2 | 53252-AAC-B00 | COVER MAIN SWITCH | 1 | |
| 3 | 61103-KVE-860 | RUBBER,FR COWL MOUNT | 2 | |
| 4 | 91410-ABW-000 | CLIP 3X130 | 1 | |
| 5 | 94001-05090-0S | NUT HEX 5MM | 4 | |
| 6 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 3 | |
| 7 | 64315-AAC-220 | STAY, FRONT NUMBER PLATE | 1 | |
| 8 | 33706-ABA-000 | PIPE CP | 2 | |
| 9 | 61104-428-000 | COLLAR, FR, FENDER | 2 | |
| 10 | 61312-AAC-B00 | STAY METER MTG | 1 | |
| 12 | 61314-AAC-B00 | BRKT. INNER PANEL SUPPORT SUB ASSY | 1 | |
| 13 | 93500-05012-0A | SCREW PAN, 5 X 12 | 2 | |
| 14 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 3 | |
| 15 | 61301-AAC-B00 | COWL FRONT | 1 | |
| 16 | 64140-AAC-B00 | SCREEN WIND | 1 | |
| 17 | 83402-AAC-B00 | PANEL INNER | 1 | |
| 18 | 93404-06016-07 | BOLT-WASHER, 6 X 16 | 1 | |
| 19 | 93903-34310 | SCREW TAPPING M4X12 | 19 | |
| 20 | 93903-34110 | SCREW, TAPPING, 4 X 8. | 1 | |
| 21 | 90320-GC3-000 | NUT, SPRING, M5 | 6 | |
| 22 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
| 23 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 24 | 64332-AAC-B00 | STAY FR COWL | 1 | |
| 25 | 61300-AAC-B00R | SET R FR COWL (CANDY BLAZING RED (R-195C)) | 1 | |
| 25 | 61300-AAC-B00S | SET R FR COWL (BLACK NH-1 (TYPE-1)) | 1 | |
| 25 | 61300-AAC-B00T | SET R FR COWL (BLACK NH-1 (TYPE-2)) | 1 | |
| 25 | 61300-AAC-B00Z | SET R FR COWL (MAT AXIS GRAY METALLIC) | 1 | |
| 26 | 61400-AAC-B00R | SET L FR COWL (CANDY BLAZING RED (R-195C)) | 1 | |
| 26 | 61400-AAC-B00S | SET L FR COWL (BLACK NH-1 (TYPE-1)) | 1 | |
| 26 | 61400-AAC-B00T | SET L FR COWL (BLACK NH-1 (TYPE-2)) | 1 | |
| 26 | 61400-AAC-B00Z | SET L FR COWL (MAT AXIS GRAY METALLIC) | 1 | |
| 27 | 94103-06000 | WASHER PLAIN,6MM | 2 | |
| 28 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
