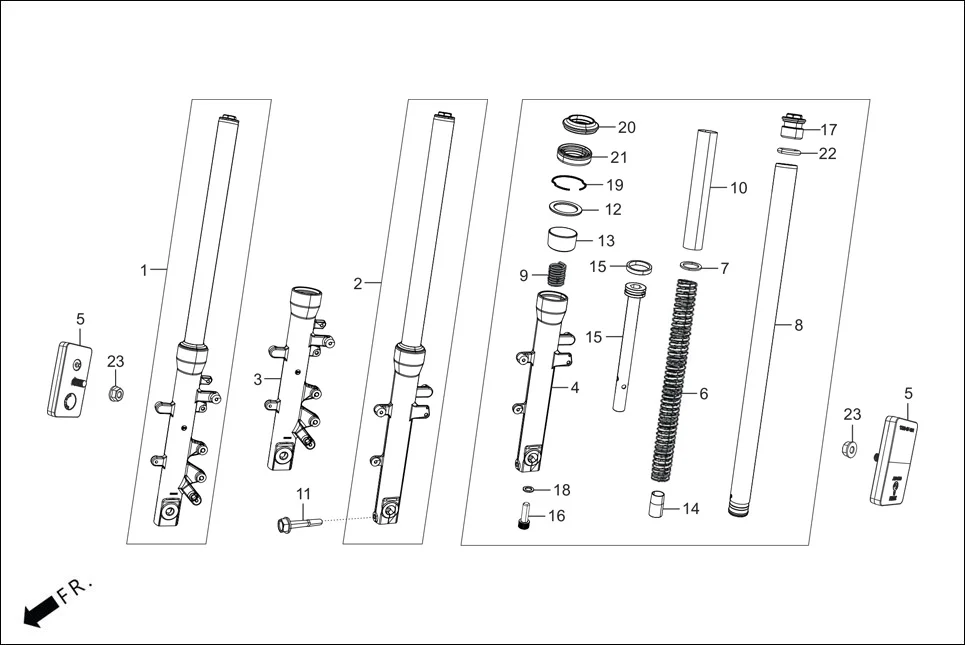

F-8 - FRONT CUSHION / STRG. STEM
Hero KARIZMA XMR (Sept. 2023) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-ACA-000 | FORK ASSY R FRONT | 1 | |
| 2 | 51500-ACA-000 | FORK ASSY L FRONT | 1 | |
| 3 | 51420-ACA-000 | CASE COMP R FRONT BOTTOM | 1 | |
| 4 | 51520-ACA-000 | CASE COMP L FRONT BOTTOM | 1 | |
| 5 | 33740-AAB-000 | REFLEX REFLECTOR FRONT | 2 | |
| 6 | 51401-ACA-000 | SPRING FR FORK | 2 | |
| 7 | 51403-ABW-001 | JOINT SPRING | 2 | |
| 8 | 51410-ACA-000 | PIPE COMP FR FORK | 2 | |
| 9 | 51412-ABW-001 | SPRING, REBOUND | 2 | |
| 10 | 51413-ACA-000 | SPACER TUBE | 2 | |
| 11 | 95701-08050-00 | BOLT, FLANGE, 8 X 50 | 1 | |
| 12 | 51419-AAB-A02 | RING BACKUP (PLAIN WASHER) | 2 | |
| 13 | 51423-AAB-A02 | SLIDE BUSH | 2 | |
| 14 | 51432-ABW-001 | PIECE. OIL LOCK | 2 | |
| 15 | 51437-ABW-001 | RING, PISTON | 2 | |
| 15 | 51440-ACA-000 | PIPE SEAT | 2 | |
| 16 | 90116-AAB-A02 | BOLT SOCKET | 2 | |
| 17 | 90123-ACA-000 | BOLT A FRONT FORK | 2 | |
| 18 | 90544-AAB-A02 | WASHER SPECIAL | 2 | |
| 19 | 90601-AAB-A02 | RING OIL SEAL STOP | 2 | |
| 20 | 91254-AAB-A02 | SEAL DUST | 2 | |
| 21 | 91255-AAB-A02 | SEAL OIL | 2 | |
| 22 | 91356-AAB-A02 | O RING | 2 | |
| 23 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
