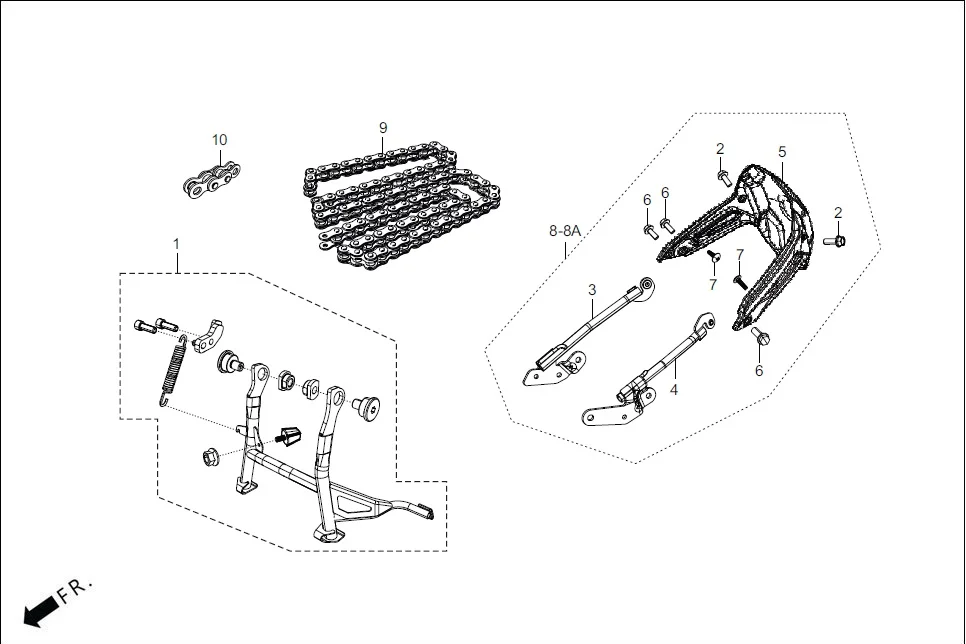

F-28 - (OPTIONAL)
Hero KARIZMA XMR (Sept. 2023) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 5050B-ACA-000 | MAIN STAND ASSY KIT | 1 | |
| 3 | 52107-ACN-000 | STAY HUGGER FENDER RH | 1 | |
| 4 | 52109-ACA-000 | STAY HUGGER FENDER LH | 1 | |
| 5 | 80125-ABZ-000 | REAR HUGGER FENDER | 1 | |
| 6 | 90111-KST-930 | BOLT, FLANGE 6 MM | 3 | |
| 8 | 5210B-ACA-000 | STAY HUGGER FENDER KIT | 1 | |
| 8 | K5210BACA000S | KIT REAR HUGGER | 1 | |
| 9 | 40530-ACA-001 | DRIVE CHAIN | 1 | |
| 10 | 40531-RAA-002 | FLARING PIN ASSY | 1 | |
