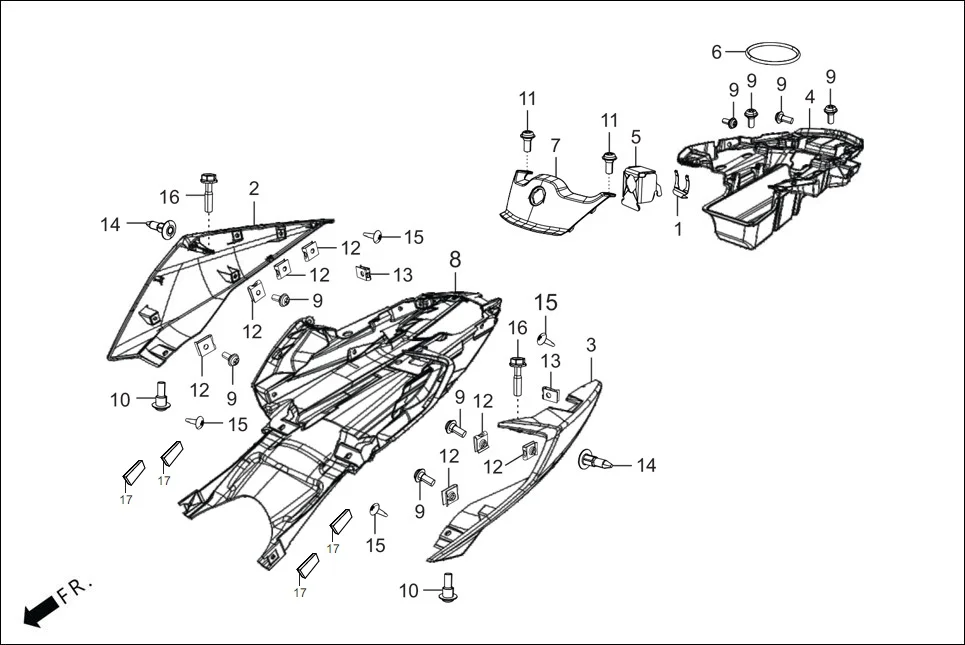

F-12 - BODY COVER
Hero KARIZMA XMR (Sept. 2023) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75581-ACD-000 | SET SPRING LOCK KEY | 1 | |
| 2 | 77245-ACA-000A | SET COWL REAR RH (PEARL RED) | 1 | |
| 2 | 77245-ACA-000B | SET COWL REAR RH (MATT SHADOW GREY) | 1 | |
| 2 | 77245-ACA-000C | SET COWL REAR RH (MATT GRAPHITE GREY) | 1 | |
| 2 | 77245-ACA-000F | SET COWL REAR RH (MOON YELLOW) | 1 | |
| 3 | 77255-ACA-000A | SET COWL REAR LH (PEARL RED) | 1 | |
| 3 | 77255-ACA-000B | SET COWL REAR LH (MATT SHADOW GREY) | 1 | |
| 3 | 77255-ACA-000C | SET COWL REAR LH (MATT GRAPHITE GREY) | 1 | |
| 3 | 77255-ACA-000F | SET COWL REAR LH (MOON YELLOW) | 1 | |
| 4 | 77230-ACA-000 | COWL INNER REAR | 1 | |
| 5 | 77244-ACD-000 | STAY SEAT LOCK CABLE | 1 | |
| 6 | 80123-KCC-870 | BAND, TOOL | 1 | |
| 7 | 88140-ACA-000E | SEAT LOCK PANEL (ME. MATTE GUN METAL) | 1 | |
| 8 | 88150-ACA-000 | TAIL LIGHT COVER | 1 | |
| 9 | 90101-GE0-000 | SCREW, HINGE PATCH | 8 | |
| 10 | 90102-GB2-720 | SCREW, PAN, 5X16 | 2 | |
| 11 | 90103-KVN-900 | SCREW, PAN 5 X 13.5 | 2 | |
| 12 | 90320-GC3-000 | NUT, SPRING, M5 | 10 | |
| 13 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 14 | 90683-AAW-300 | CLIP TRIM. | 3 | |
| 15 | 93903-34210 | SCREW TAPPING 4X10 | 4 | |
| 16 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 17 | 83407-AAW-000 | CUSHION, FR VISOR | 4 | |
