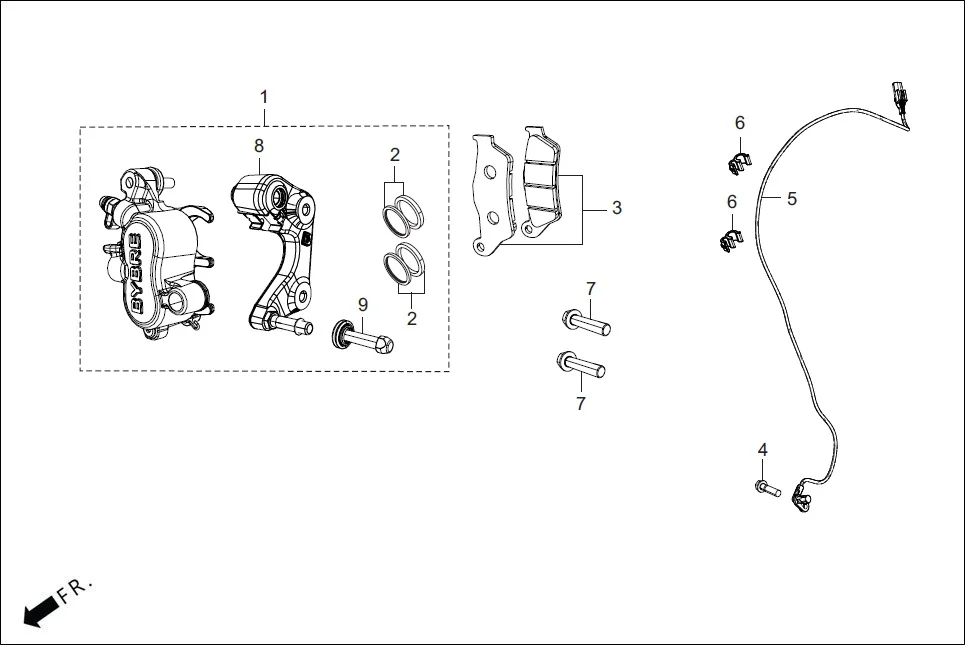

F-4A - FRONT BRAKE (FRONT CALIPER ASSY.)
Hero KARIZMA XMR (Sept. 2023) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45250-ACA-000 | CALIPER SUB ASSY | 1 | |
| 2 | 06451-ACA-000 | PISTON SEAL SET | 1 | |
| 3 | 06455-ACA-000 | BRAKE PAD | 1 | |
| 4 | 95701-06018-0D | BOLT FLANGE 6X18 | 1 | |
| 5 | 38520-ACA-000 | SENSOR FRONT WHEEL SPEED | 1 | |
| 6 | 43301-AAB-A00 | CLIP BRAKE LINE | 2 | |
| 7 | 96500-08035-0F | BOLT CALIPER MOUNTING 8X35 | 2 | |
| 8 | 45290-ACA-000 | BRACKET ASSEMBLY | 2 | |
| 9 | 45221-AAN-G00 | BOOT SET | 1 | |
