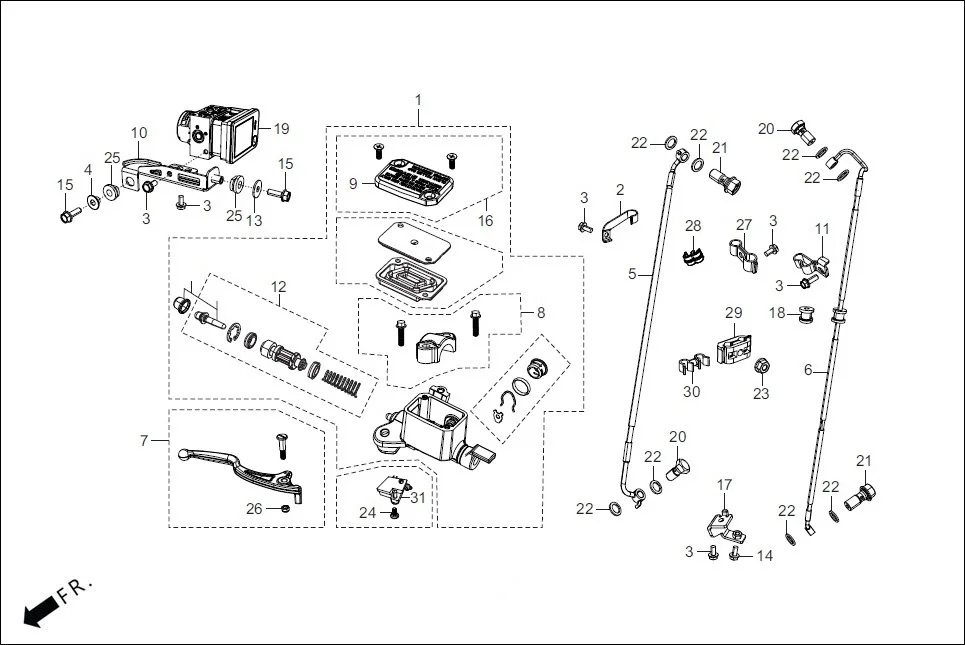

F-4 - FRONT BRAKE (MASTER CYLINDER/HOSE)
Hero KARIZMA XMR (Sept. 2023) · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45510-ACP-000 | MASTER CYL SUB ASSY SET | 1 | |
| 2 | 45156-ABZ-010 | CLAMPER FR. BRAKE | 1 | |
| 3 | 95701-06012-0F | BOLT FLANGE 6X12 | 5 | |
| 4 | 19052-AAB-A00 | COLLAR ABS UNIT MOUNTING | 1 | |
| 5 | 45126-ACA-000 | BRK HOSE ASSY HECU TO FR CALIPER | 1 | |
| 6 | 45128-ACA-000 | BRK HOSE ASSY FR MASTER CYLINDER TO HECU | 1 | |
| 7 | 45508-ACP-000 | LEVER SET | 1 | |
| 8 | 45509-ACF-000 | CLAMP SET | 1 | |
| 9 | 45513-ACP-000 | CAP MASTER CYLINDER | 2 | |
| 10 | 50207-ACA-000 | MT UPPER BRKT ABS CONTROL UNIT | 1 | |
| 11 | 45155-ACA-000 | CLAMPER A FR BRAKE | 1 | |
| 12 | 45530-ACP-000 | CYLINDER SET MASTER | 1 | |
| 13 | 94103-06F00 | WASHER PLAIN 6MM | 1 | |
| 14 | 95701-06014-0F | BOLT FLANGE 6X14 | 2 | |
| 15 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 16 | 45590-ACP-000 | RESERVOIR COVER SET | 1 | |
| 17 | 45153-ACA-000 | BRACKET HECU TO CALIPER HOSE ASSY | 1 | |
| 18 | 46427-AAB-A00 | RUBBER HOSE CLAMP | 1 | |
| 19 | 57111-ACA-000 | HECU 2 CHANNEL SPD | 1 | |
| 20 | 90042-AAB-A00 | BANJO BOLT M10X1 | 2 | |
| 21 | 90145-RAA-000 | OIL BOLT 10X22 | 2 | |
| 22 | 90545-ABZ-000 | WASHER OIL BOLT | 8 | |
| 23 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 24 | 90112-ACP-010 | PAN HEAD SCREW | 1 | |
| 25 | 83545-AAB-A00 | RUBBER ABS UNIT MOUNTING | 2 | |
| 26 | 90303-ACP-000 | NYLOC NUT | 1 | |
| 27 | 45157-ACA-000 | CLAMPER C FR BRAKE | 1 | |
| 28 | 43301-AAB-A00 | CLIP BRAKE LINE | 1 | |
| 29 | 43443-ACA-000 | CLIP 2-WAY BRAKE TUBE | 1 | |
| 30 | 43443-ACD-000 | CLIP 2-WAY,BRAKE TUBE | 1 | |
| 31 | 45570-ACF-000 | SWITCH SET | 1 | |
