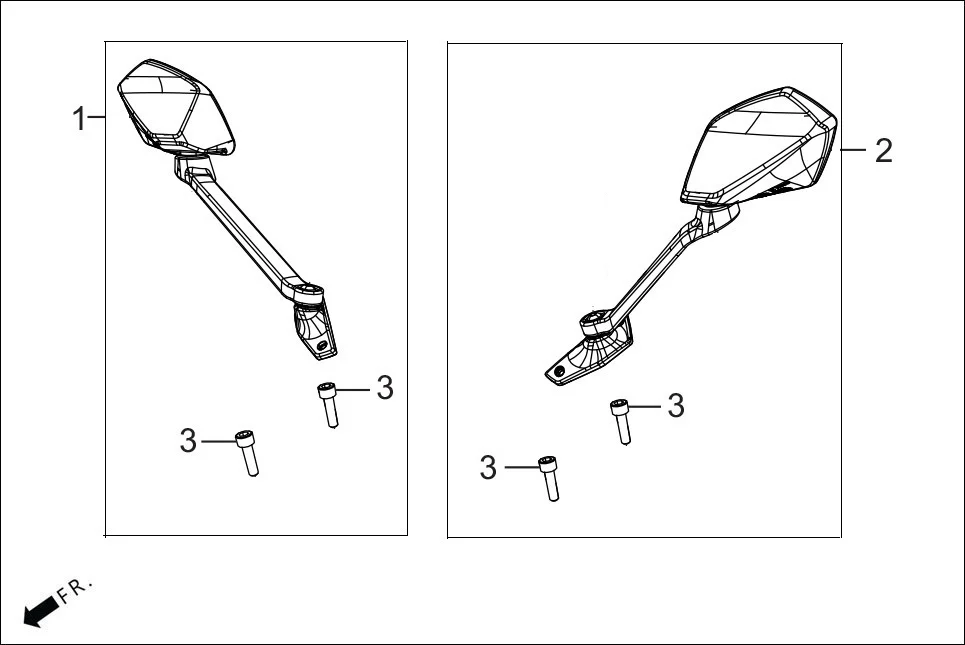

F-3A - MIRROR ASSY.
Hero KARIZMA XMR (Sept. 2023) · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 99651-ACA-001 | ANTI GLARE MIRROR ASSY R | 1 | |
| 2 | 99661-ACA-001 | ANTI GLARE MIRROR ASSY L | 1 | |
| 3 | 96600-06022-00 | SOCKET BOLT 6X22 | 4 | |
