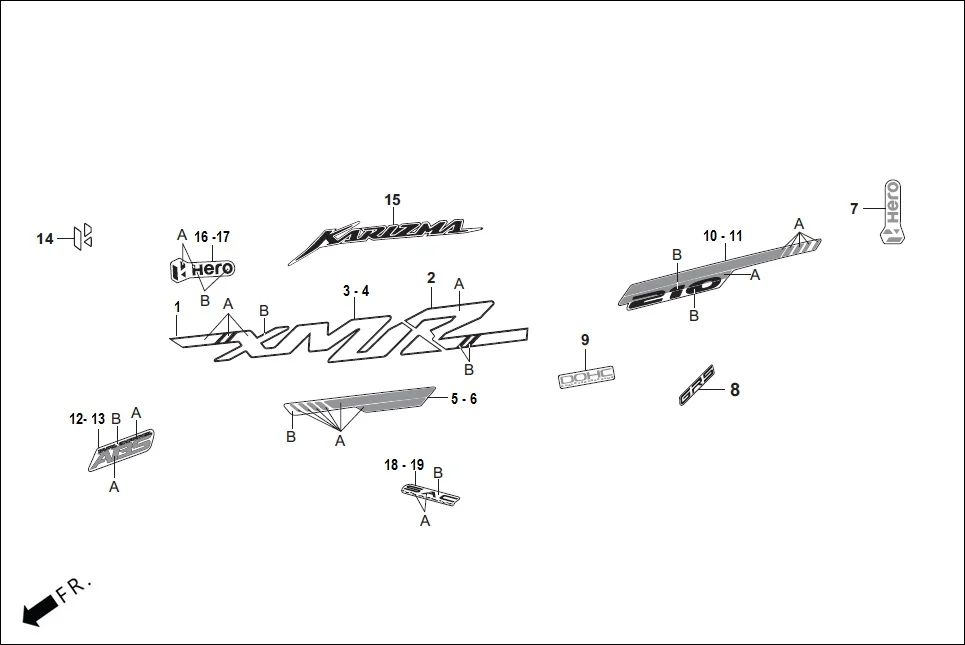

F-27 - STRIPES / MARKS
Hero KARIZMA XMR (Sept. 2023) · 61 parts
Parts in This Assembly (61)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64211-ACA-000A | STRIPE SIDE ORNAMENT RH (TYPE-1) | 1 | |
| 1 | 64211-ACA-000B | STRIPE SIDE ORNAMENT RH (TYPE-2) | 1 | |
| 1 | 64211-ACA-000C | STRIPE SIDE ORNAMENT RH (TYPE-3) | 1 | |
| 1 | 64211-ACA-000F | STRIPE SIDE ORNAMENT RH (TYPE-4) | 1 | |
| 2 | 64212-ACA-000A | STRIPE SIDE ORNAMENT LH (TYPE-1) | 1 | |
| 2 | 64212-ACA-000B | STRIPE SIDE ORNAMENT LH (TYPE-2) | 1 | |
| 2 | 64212-ACA-000C | STRIPE SIDE ORNAMENT LH (TYPE-3) | 1 | |
| 2 | 64212-ACA-000F | STRIPE SIDE ORNAMENT LH (TYPE-4) | 1 | |
| 3 | 64216-ACA-000A | STRIPE A FAIRING R SIDE (TYPE-1) | 1 | |
| 3 | 64216-ACA-000B | STRIPE A FAIRING R SIDE (TYPE-2) | 1 | |
| 3 | 64216-ACA-000C | STRIPE A FAIRING R SIDE (TYPE-3) | 1 | |
| 3 | 64216-ACA-000F | STRIPE A FAIRING R SIDE (TYPE-4) | 1 | |
| 4 | 64217-ACA-000A | STRIPE A FAIRING L SIDE (TYPE-1) | 1 | |
| 4 | 64217-ACA-000B | STRIPE A FAIRING L SIDE (TYPE-2) | 1 | |
| 4 | 64217-ACA-000C | STRIPE A FAIRING L SIDE (TYPE-3) | 1 | |
| 4 | 64217-ACA-000F | STRIPE A FAIRING L SIDE (TYPE-4) | 1 | |
| 5 | 64218-ACA-000A | STRIPE B FAIRING R SIDE (TYPE-1) | 1 | |
| 5 | 64218-ACA-000B | STRIPE B FAIRING R SIDE (TYPE-2) | 1 | |
| 5 | 64218-ACA-000C | STRIPE B FAIRING R SIDE (TYPE-3) | 1 | |
| 5 | 64218-ACA-000F | STRIPE B FAIRING R SIDE (TYPE-4) | 1 | |
| 6 | 64219-ACA-000A | STRIPE B FAIRING L SIDE (TYPE-1) | 1 | |
| 6 | 64219-ACA-000B | STRIPE B FAIRING L SIDE (TYPE-2) | 1 | |
| 6 | 64219-ACA-000C | STRIPE B FAIRING L SIDE (TYPE-3) | 1 | |
| 6 | 64219-ACA-000F | STRIPE B FAIRING L SIDE (TYPE-4) | 1 | |
| 7 | 77238-ACA-000 | MARK HERO RR FENDER | 1 | |
| 8 | 86281-ACA-000 | MARK GRS CUSHION REAR | 1 | |
| 9 | 86503-ACA-000A | MARK DOHC RH (TYPE-1) | 2 | |
| 10 | 86771-ACA-000A | STRIPE COWL REAR RH (TYPE-1) | 1 | |
| 10 | 86771-ACA-000B | STRIPE COWL REAR RH (TYPE-2) | 1 | |
| 10 | 86771-ACA-000C | STRIPE COWL REAR RH (TYPE-3) | 1 | |
| 10 | 86771-ACA-000F | STRIPE COWL REAR RH (TYPE-4) | 1 | |
| 11 | 86772-ACA-000A | STRIPE COWL REAR LH (TYPE-1) | 1 | |
| 11 | 86772-ACA-000B | STRIPE COWL REAR LH (TYPE-2) | 1 | |
| 11 | 86772-ACA-000C | STRIPE COWL REAR LH (TYPE-3) | 1 | |
| 11 | 86772-ACA-000F | STRIPE COWL REAR LH (TYPE-4) | 1 | |
| 12 | 86797-ACA-000A | MARK ABS RH (TYPE-1) | 1 | |
| 12 | 86797-ACA-000B | MARK ABS RH (TYPE-2) | 1 | |
| 12 | 86797-ACA-000C | MARK ABS RH (TYPE-3) | 1 | |
| 12 | 86797-ACA-000F | MARK ABS RH (TYPE-4) | 1 | |
| 13 | 86798-ACA-000A | MARK ABS LH (TYPE-1) | 1 | |
| 13 | 86798-ACA-000B | MARK ABS LH (TYPE-2) | 1 | |
| 13 | 86798-ACA-000C | MARK ABS LH (TYPE-3) | 1 | |
| 13 | 86798-ACA-000F | MARK ABS LH (TYPE-4) | 1 | |
| 14 | 86830-ACA-000 | H EMBLEM | 1 | |
| 15 | 86833-ACA-000 | EMBLEM TANK SIDE | 2 | |
| 16 | 87277-ACA-000A | MARK HERO FAIRING R SIDE (TYPE-1) | 1 | |
| 16 | 87277-ACA-000B | MARK HERO FAIRING R SIDE (TYPE-2) | 1 | |
| 16 | 87277-ACA-000C | MARK HERO FAIRING R SIDE (TYPE-3) | 1 | |
| 16 | 87277-ACA-000F | MARK HERO FAIRING R SIDE (TYPE-4) | 1 | |
| 17 | 87278-ACA-000A | MARK HERO FAIRING L SIDE (TYPE-1) | 1 | |
| 17 | 87278-ACA-000B | MARK HERO FAIRING L SIDE (TYPE-2) | 1 | |
| 17 | 87278-ACA-000C | MARK HERO FAIRING L SIDE (TYPE-3) | 1 | |
| 17 | 87278-ACA-000F | MARK HERO FAIRING L SIDE (TYPE-4) | 1 | |
| 18 | 87279-ACA-000A | MARK SAC RH (TYPE-1) | 1 | |
| 18 | 87279-ACA-000B | MARK SAC RH (TYPE-2) | 1 | |
| 18 | 87279-ACA-000C | MARK SAC RH (TYPE-3) | 1 | |
| 18 | 87279-ACA-000F | MARK SAC RH (TYPE-4) | 1 | |
| 19 | 87280-ACA-000A | MARK SAC LH (TYPE-1) | 1 | |
| 19 | 87280-ACA-000B | MARK SAC LH (TYPE-2) | 1 | |
| 19 | 87280-ACA-000C | MARK SAC LH (TYPE-3) | 1 | |
| 19 | 87280-ACA-000F | MARK SAC LH (TYPE-4) | 1 | |
