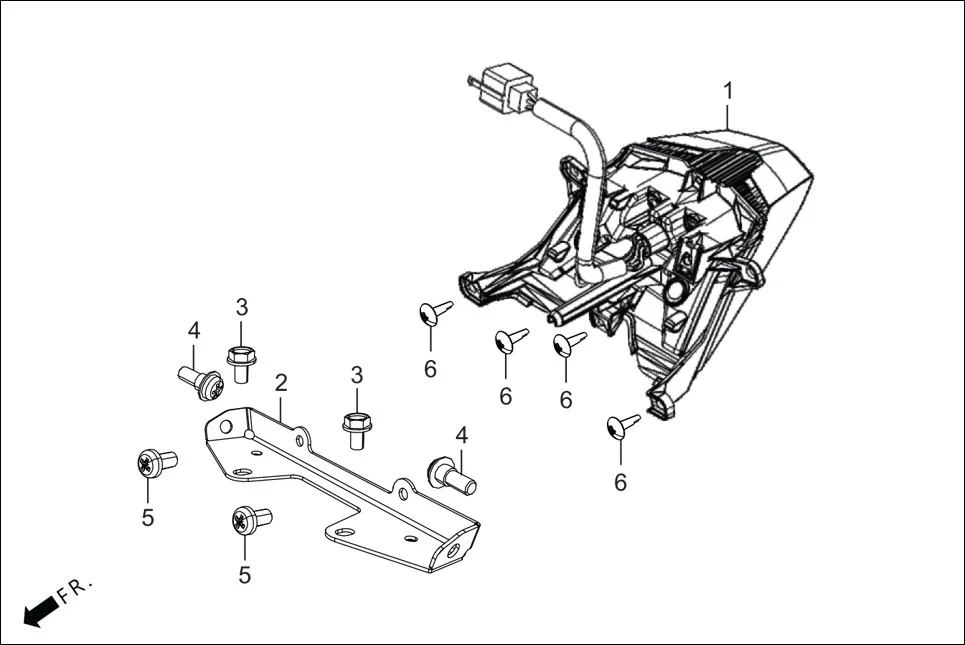

F-23 - TAIL LIGHT
Hero KARIZMA XMR (Sept. 2023) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33700-ACA-001 | UNIT TAIL LIGHT | 1 | |
| 2 | 77232-ACA-000 | BRKT TAIL LIGHT | 1 | |
| 3 | 95701-06010-0M | BOLT FLANGE 6X10 | 2 | |
| 4 | 90103-KVN-900 | SCREW, PAN 5 X 13.5 | 2 | |
| 5 | 93500-05010-0F | SCREW PAN 5X10 | 2 | |
| 6 | 93903-24380 | SCREW TAPPING, 4 X 12 | 4 | |
