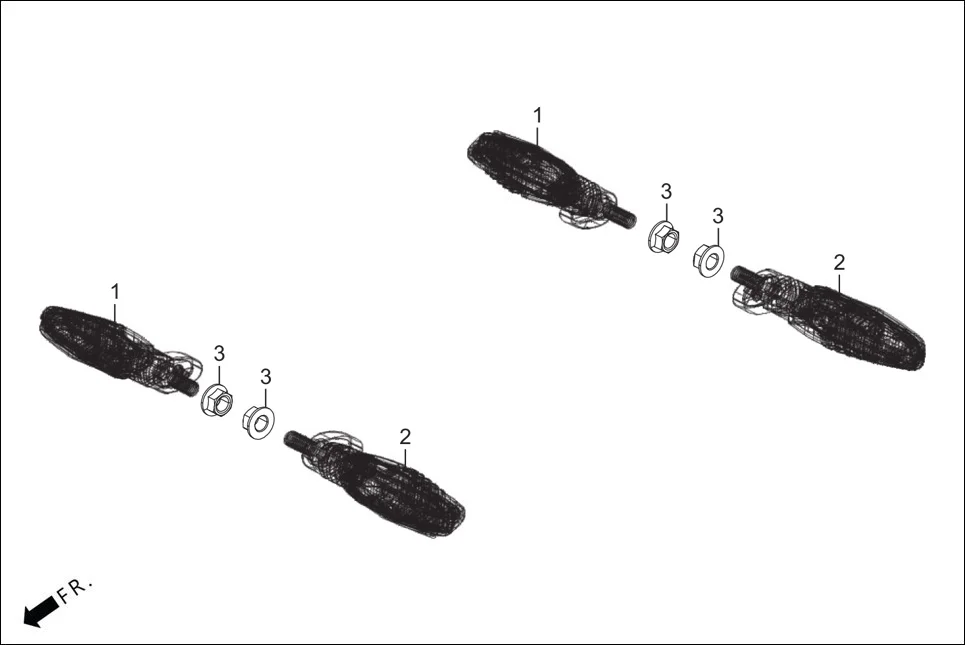

F-22 - FR./RR. WINKERS
Hero KARIZMA XMR (Sept. 2023) · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-ACD-001 | WINKER ASSY R FR | 2 | |
| 2 | 33450-ACD-001 | WINKER ASSY L FR | 2 | |
| 3 | 94050-08000 | NUT, FLANGE, 8MM | 4 | |
