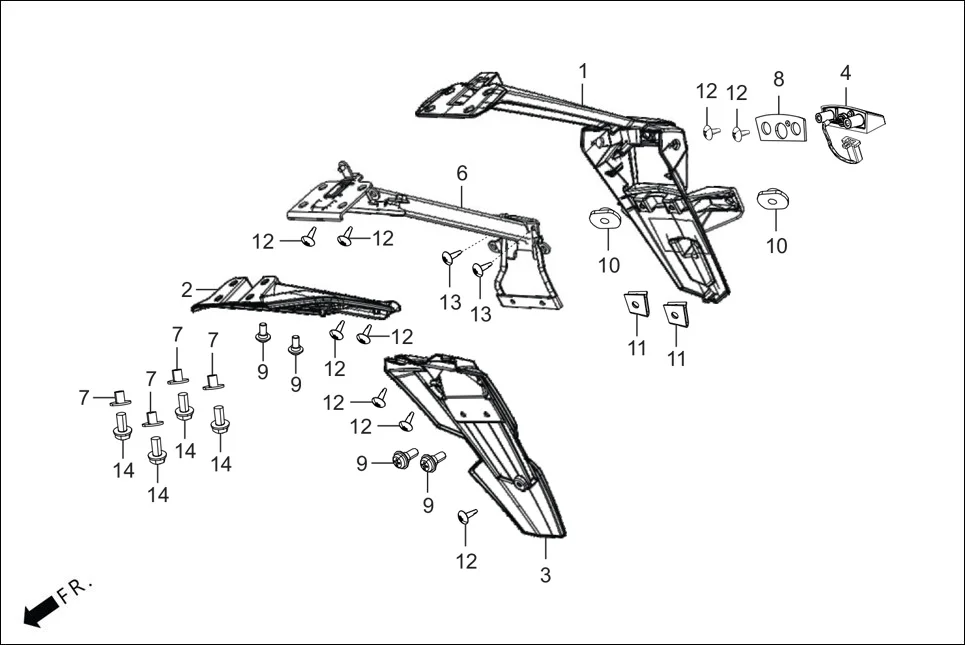

F-21 - REAR FENDER
Hero KARIZMA XMR (Sept. 2023) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 80100-ACA-000 | REAR FENDER A | 1 | |
| 2 | 80110-ACA-000 | REAR FENDER B | 1 | |
| 3 | 80120-ACA-000 | REAR FENDER C | 1 | |
| 4 | 33720-ACD-001 | LIGHT ASSY LICENSE | 1 | |
| 5 | 33743-AAR-001 | REFLEX REFLECTOR SIDE | 1 | |
| 6 | 50186-ACA-000 | STAY REAR FENDER | 1 | |
| 7 | 77201-ACA-000 | COLLAR, FENDER MTG. | 4 | |
| 8 | 80203-ACP-001 | RUBBER LICENSE LIGHT | 1 | |
| 9 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
| 10 | 90311-AAA-000 | NUT REAR FENDER | 2 | |
| 11 | 90320-GC3-000 | NUT, SPRING, M5 | 2 | |
| 12 | 93903-24380 | SCREW TAPPING, 4 X 12 | 9 | |
| 13 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
| 14 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 4 | |
