F-20-REAR CUSHION

HeroKARIZMA XMR (Sept. 2023) · 4 parts

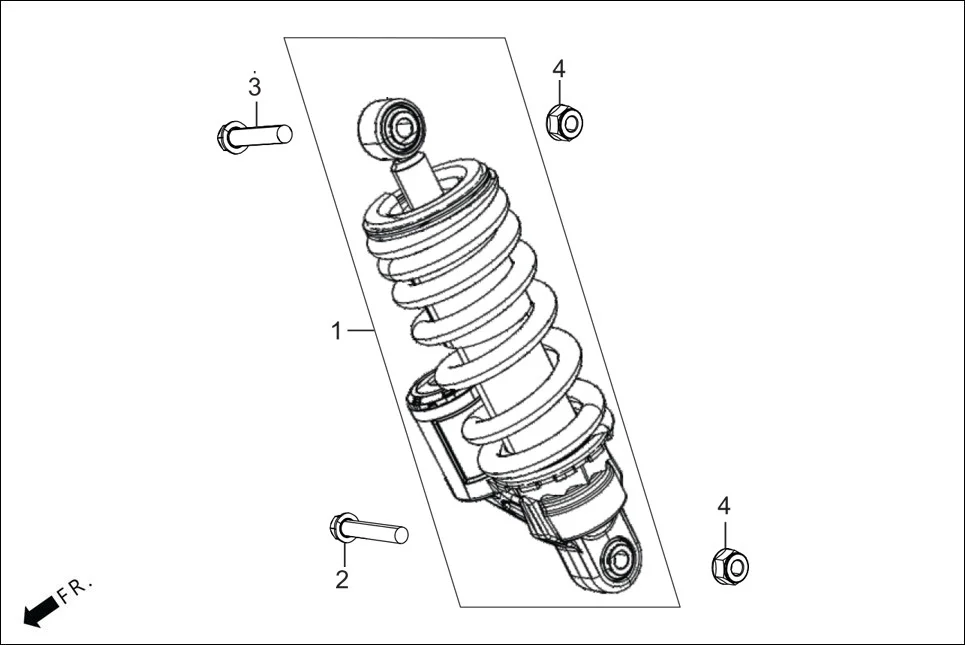

F-20 REAR CUSHION assembly diagram for Hero KARIZMA XMR (Sept. 2023)

Parts in This Assembly (4)

Ref #Part NumberDescriptionQty
152450-ACA-000SET CUSHION REAR1
290154-AAB-A00BOLT FLANGE 10X551
390159-AAB-A00BOLT FLANGE 10X501
490304-KST-942NUT FLG.PT 10MM2
