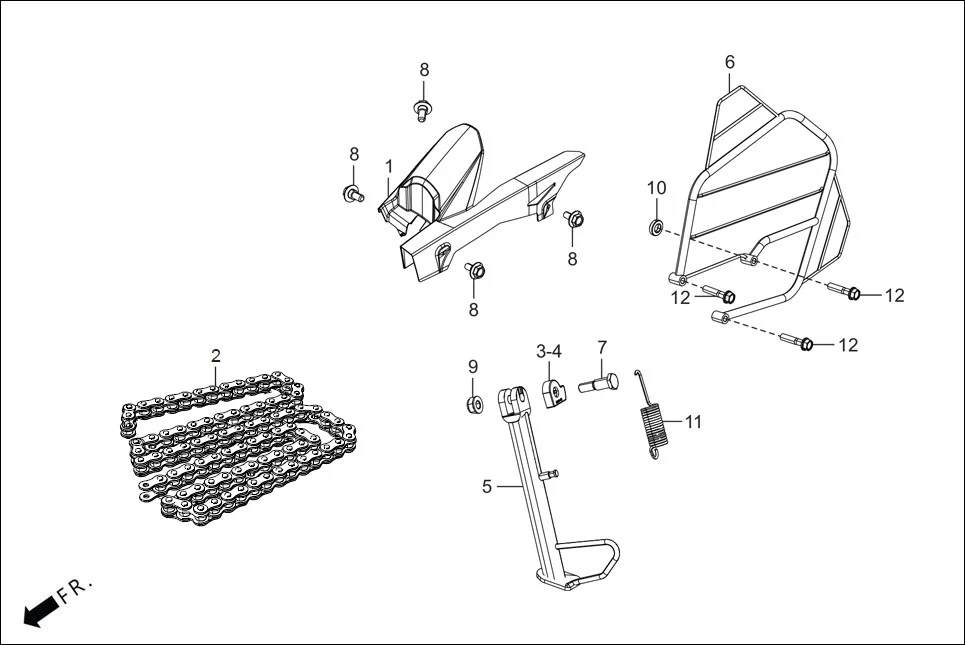

F-19A - CHAIN CASE & STAND
Hero KARIZMA XMR (Sept. 2023) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-ACA-000 | CHAIN CASE UPPER | 1 | |
| 2 | 40530-ABW-901 | DRIVE CHAIN 520-110 | 1 | |
| 2 | 40530-ABW-90099 | DRIVE CHAIN 520 110 | 1 | |
| 3 | 35130-ABH-501 | MAGNET HOLDER | 1 | |
| 4 | 35130-ABH-502 | MAGNET HOLDER ASSY. | 1 | |
| 5 | 50530-ACA-000 | BAR COMP SIDE STAND | 1 | |
| 6 | 51103-ACA-000 | GUARD SAREE | 1 | |
| 7 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 8 | 90111-187-000 | BOLT, FLANGE. 6 MM | 4 | |
| 9 | 90304-KFN-850 | NUT U 10 MM | 1 | |
| 10 | 90502-ACA-000 | COLLAR 8MM | 1 | |
| 11 | 95014-72102 | SPRING, SIDE STAND | 1 | |
| 12 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 3 | |
