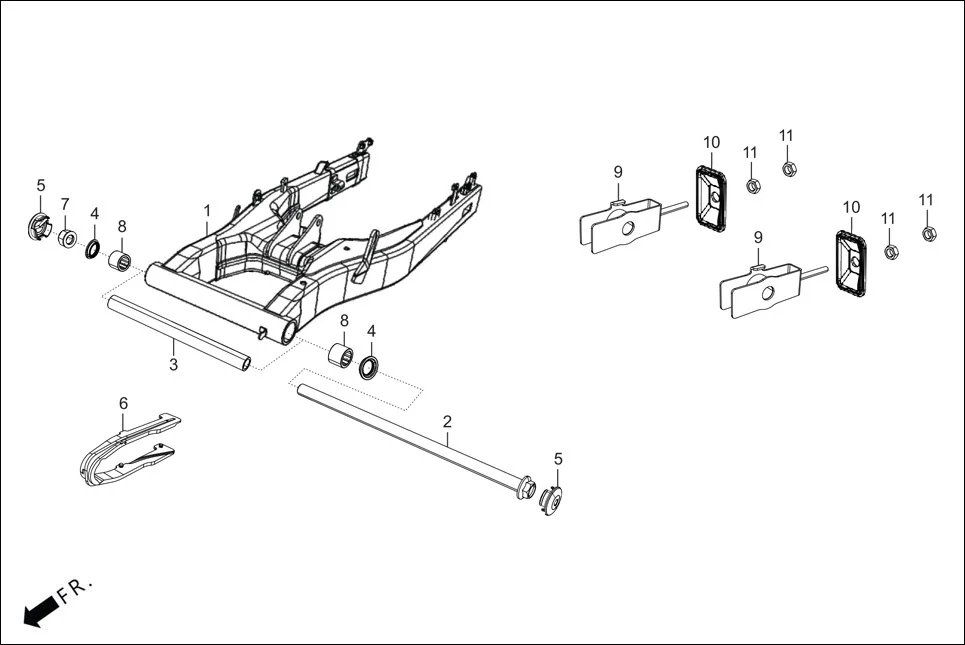

F-19 - SWINGARM REAR
Hero KARIZMA XMR (Sept. 2023) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52110-ACA-000 | SWINGARM COMP RR | 1 | |
| 2 | 52101-ACA-000 | BOLT SWINGARM PIVOT | 1 | |
| 3 | 52141-ACA-000 | COLLAR SWING ARM PIVOT | 1 | |
| 4 | 52144-ABZ-601 | DUST SEAL CAP RR SWINGARM | 2 | |
| 5 | 52157-ACA-000 | CAP SWING-ARM PIVOT | 2 | |
| 6 | 52170-ACA-000 | SLIDER CHAIN | 1 | |
| 7 | 90305-KVN-900 | NUT, FLG. PT. 14 MM | 1 | |
| 8 | 91071-KVN-900 | BRG, NEEDLE 20X26X20 | 2 | |
| 9 | 40544-ACA-000 | ADJUSTER CHAIN | 2 | |
| 10 | 40546-ACA-000 | CAP SWING ARM | 2 | |
| 11 | 94002-08000-0S | NUT HEX.8 MM | 4 | |
