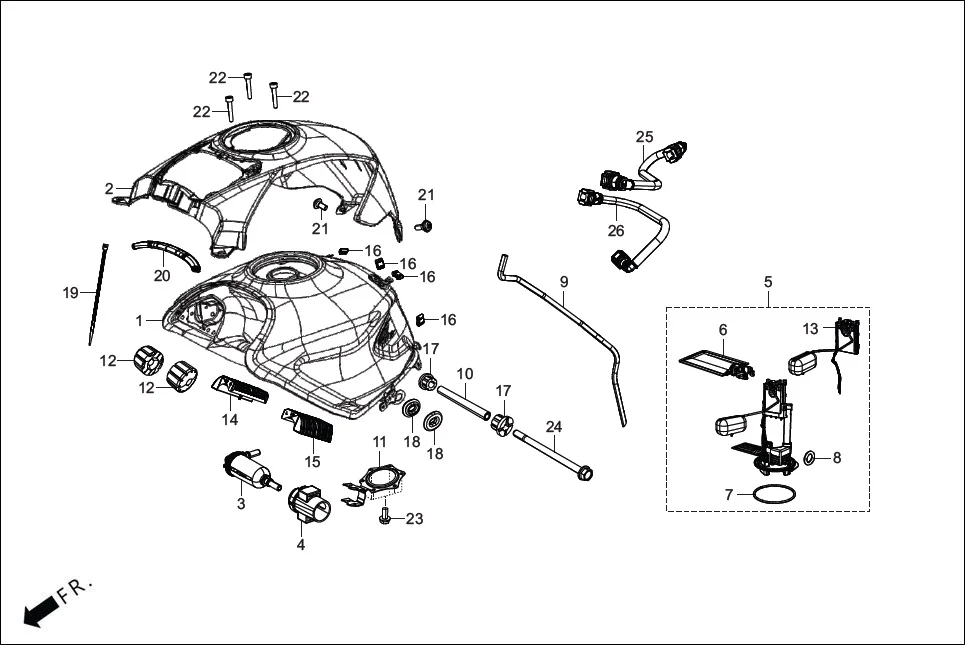

F-13 - FUEL TANK /CANISTER/TUBES
Hero KARIZMA XMR (Sept. 2023) · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17520-ACA-000D | SET FUEL TANK (BLACK NH-1) | 1 | |
| 2 | 17530-ACA-000A | FUEL TANK COVER (PEARL RED) | 1 | |
| 2 | 17530-ACA-000B | FUEL TANK COVER (MATT SHADOW GREY) | 1 | |
| 2 | 17530-ACA-000C | FUEL TANK COVER (MATT GRAPHITE GREY) | 1 | |
| 2 | 17530-ACA-000F | FUEL TANK COVER (MOON YELLOW) | 1 | |
| 3 | 16410-ACA-000 | FUEL FILTER | 1 | |
| 4 | 16411-ACA-000 | SUSP EXTERNAL FILTER | 1 | |
| 5 | 16700-ACA-000 | UNIT ASSY FUEL PUMP | 1 | |
| 6 | 16701-ACD-001 | FUEL PUMP FILTER | 1 | |
| 7 | 16702-ACA-000 | FUEL PUMP FLANGE O RING | 1 | |
| 8 | 16702-ACD-002 | FUEL PUMP FILTER O RING | 1 | |
| 9 | 17199-ACA-000 | TUBE DRAIN | 1 | |
| 10 | 17313-ACA-000 | COLLAR REAR FUEL TANK | 1 | |
| 11 | 17511-ACA-000 | PLATE SETTING SUB ASSY | 1 | |
| 12 | 17611-KRY-970 | CUSHION , FRONT FUEL TANK | 2 | |
| 13 | 37800-ACA-000 | UNIT ASSY FUEL | 1 | |
| 14 | 50328-ACA-000 | DAMPER R TANK COMP FUEL | 1 | |
| 15 | 50329-ACA-000 | DAMPER L TANK COMP FUEL | 1 | |
| 16 | 77267-KTR-900 | RUBBER, COWL | 4 | |
| 17 | 83408-ACA-000 | CUSHION REAR FUEL TANK | 2 | |
| 18 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 19 | 90657-AAW-300 | CABLE TIE (LONG) | 2 | |
| 20 | 90810-ACA-000 | RUBBER BEADING FUEL TANK | 1 | |
| 21 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 2 | |
| 22 | 96700-04025-00 | BOLT SOCKET 4X25 | 3 | |
| 23 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 6 | |
| 24 | 95701-08130-01 | BOLT FLANGE M8X130 | 1 | |
| 25 | 17574-ACA-000 | HOSE COMP FUEL A | 1 | |
| 26 | 17575-ACA-000 | HOSE COMP FUEL B | 1 | |
