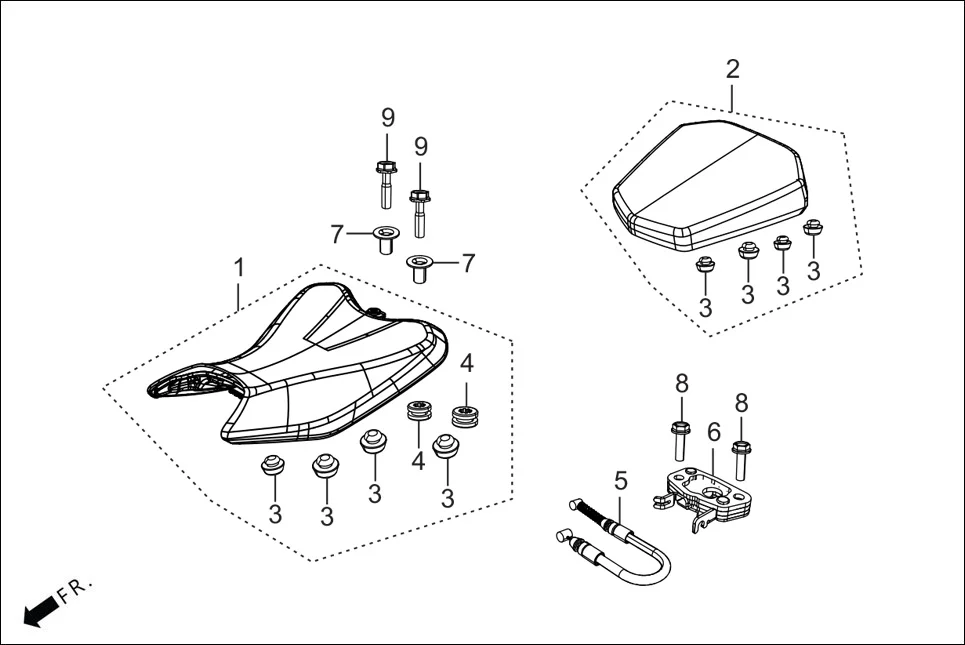

F-12A - SEAT ASSY.
Hero KARIZMA XMR (Sept. 2023) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77100-ACA-000 | SEAT COMP RIDER | 1 | |
| 2 | 77300-ACA-000 | SEAT COMP PILLION | 1 | |
| 3 | ACAAB4U000000G | GROMMET SEAT | 8 | |
| 4 | 64122-KV0-000 | RUB B , SIDESHELTER | 2 | |
| 5 | 77156-ACA-001 | CABLE SEAT LOCK | 1 | |
| 6 | 77170-ACF-000 | BRKT D COMP SEAT LOCK | 1 | |
| 7 | 77207-KWF-900 | COLLAR , SEAT MOUNTING | 2 | |
| 8 | 95701-06022-07 | BOLT,FLANGE,6 X 22 | 2 | |
| 9 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
