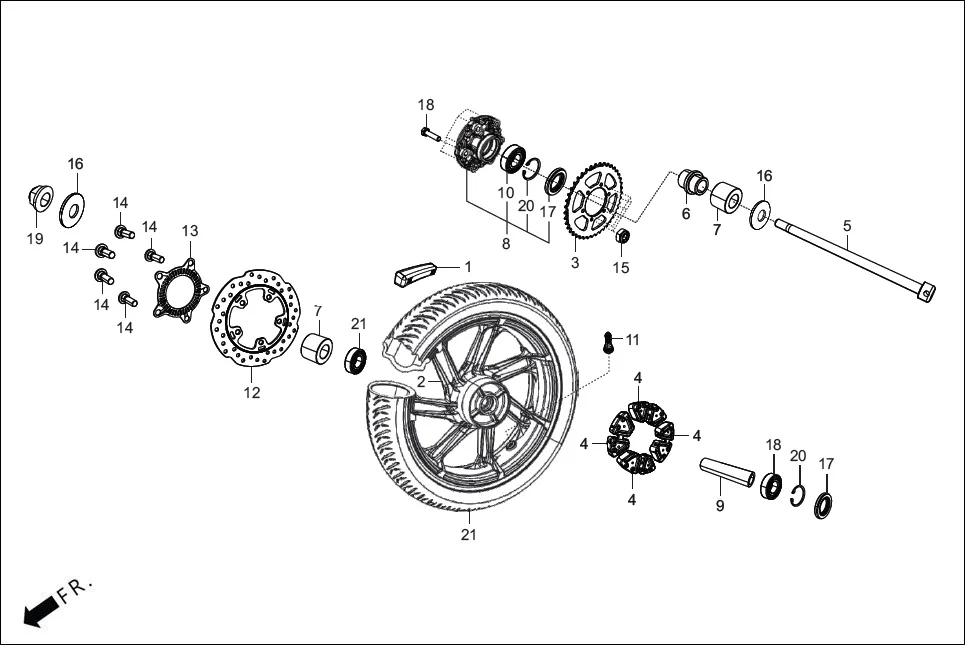

F-11 - RR WHEEL / FLANGE ASSY. DRIVEN
Hero KARIZMA XMR (Sept. 2023) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42703-AAB-A00 | WEIGHT BALANCE 5 | 1 | |
| 1 | 42704-AAB-A00 | WEIGHT BALANCE 10 | 1 | |
| 1 | 42707-AAB-A00 | WEIGHT BALANCE 15 | 1 | |
| 1 | 42705-AAB-A00 | WEIGHT BALANCE 20 | 1 | |
| 2 | 42601-ACA-001 | WHEEL COMP REAR | 1 | |
| 3 | 41201-ACA-000 | SPROKCET FINAL DRIVEN 42T | 1 | |
| 4 | 41241-ACD-000 | DAMPER, REAR WHEEL | 4 | |
| 5 | 42301-ACA-000 | AXLE REAR | 1 | |
| 6 | 42303-ACA-000 | SLEEVE REAR WHEEL | 1 | |
| 7 | 42311-ACA-000 | COLLAR RR WHEEL SIDE | 2 | |
| 8 | 42615-ACA-000 | FLANGE SUB ASSY FINAL DRIVEN | 1 | |
| 9 | 42620-ACA-000 | REAR COLLAR AXLE DISTANCE | 1 | |
| 10 | 96150-60050-10 | BEARING, BALL RADIAL, 6005 | 1 | |
| 11 | 42753-KWF-90099 | RIM VALVE | 2 | |
| 12 | 43251-ACA-000 | DISK RR BRAKE | 1 | |
| 13 | 43252-ACD-000 | SENSOR RING REAR | 1 | |
| 14 | 90105-KL8-741 | BOLT, FR.DISK, 8 X 24 | 5 | |
| 15 | 90308-KWA-940 | NUT PT. 8MM | 6 | |
| 16 | 90559-ACA-000 | WASHER L RR AXLE | 2 | |
| 17 | 91258-ACA-001 | DUST SEAL 47X29X5 | 2 | |
| 18 | 96140-63030-11 | BEARING BALL RADIAL 63030 | 2 | |
| 19 | 94050-16000 | NUT FLANGE 16MM | 1 | |
| 20 | 94521-47125 | CIRCLIP IN 47 | 2 | |
