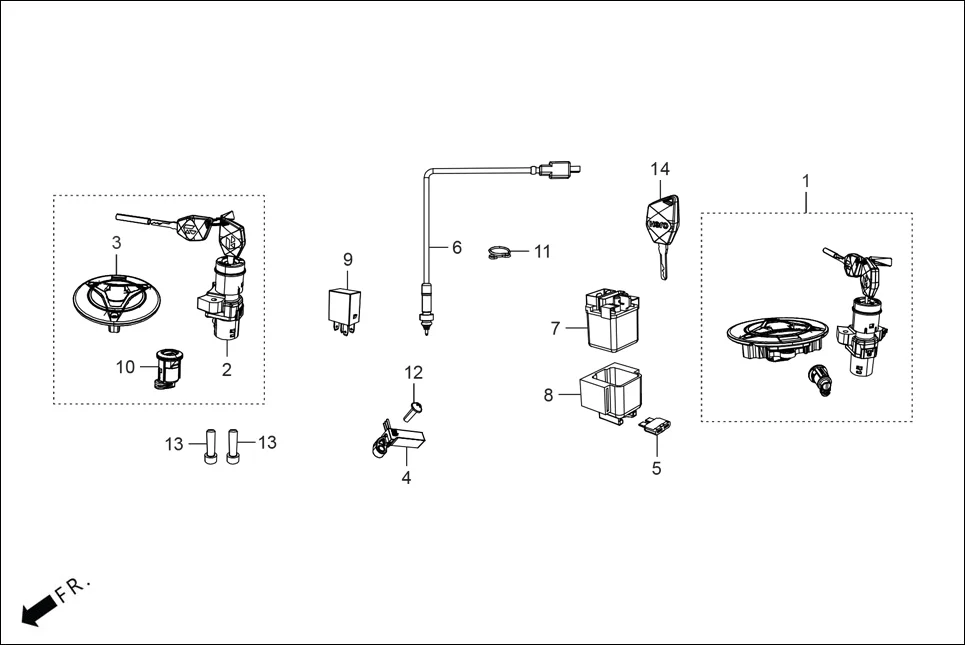

F-5 - SWITCH & RELAY
Hero THE CENTENNIAL(OCT.,2024) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ACYAA7V000000G | KEY SET | 1 | |
| 2 | 35100-ACA-001 | SW ASSY COMB AND LOCK | 1 | |
| 3 | 35121-ACA-001 | KEY BLANK NO 1 | 1 | |
| 4 | 35140-AAE-B01 | SENSOR ASSY. SIDE STAND | 1 | |
| 4 | 35140-AAE-B02 | SENSOR ASSY. SIDE STAND | 1 | |
| 5 | 98200-32000 | BLADE, FUSE, 20A | 1 | |
| 6 | 35350-KFN-850 | SW.ASSY.RR.STOP | 1 | |
| 7 | 35850-AAM-H01 | SW ASSY. START MAG | 1 | |
| 8 | 35856-KBG-007 | RUBBER,SHOCK | 1 | |
| 9 | 38551-AAW-501 | RELAY COMP. POWER (MICRO ISO 4P) | 4 | |
| 10 | 77239-ACD-001 | KEY SEAT LOCK | 1 | |
| 11 | 90601-KAF-003 | CLIP, SW. COVER | 1 | |
| 12 | 93891-05016-07 | SCREW WASH 5X16 | 1 | |
| 13 | 96700-06020-07 | BOLT, SOCKET, 6 X 20 | 2 | |
