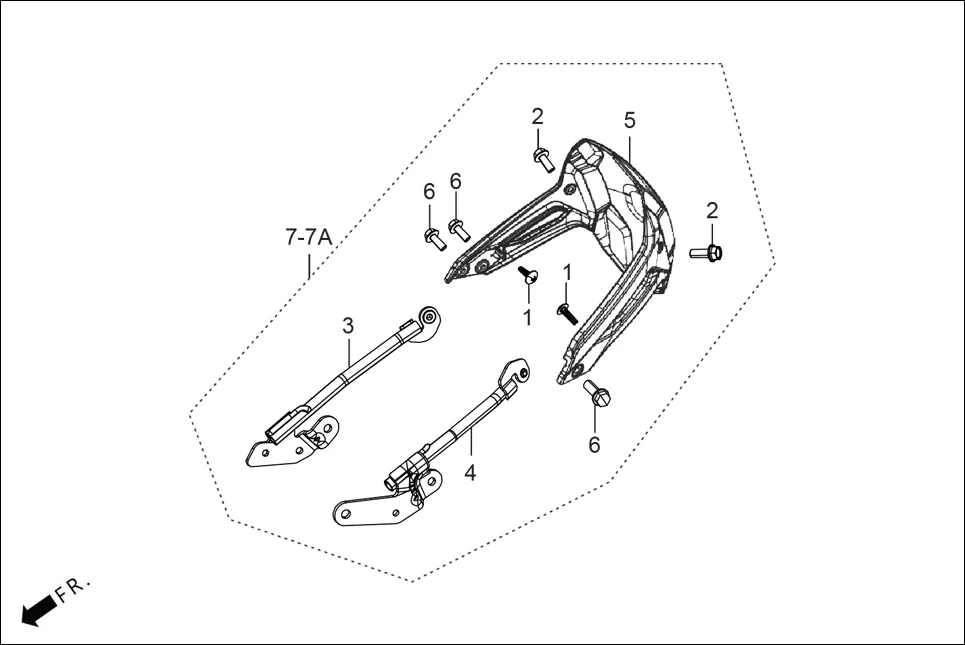

F-28 - (OPTIONAL)
Hero THE CENTENNIAL(OCT.,2024) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 2 | |
| 2 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 3 | 52107-ACN-000 | STAY HUGGER FENDER RH | 1 | |
| 4 | 52109-ACA-000 | STAY HUGGER FENDER LH | 1 | |
| 5 | 80125-ABZ-000 | REAR HUGGER FENDER | 1 | |
| 6 | 90111-KST-930 | BOLT, FLANGE 6 MM | 3 | |
| 7 | 5210B-ACA-000 | STAY HUGGER FENDER KIT | 1 | |
| 7 | K5210BACA000S | KIT REAR HUGGER | 1 | |
