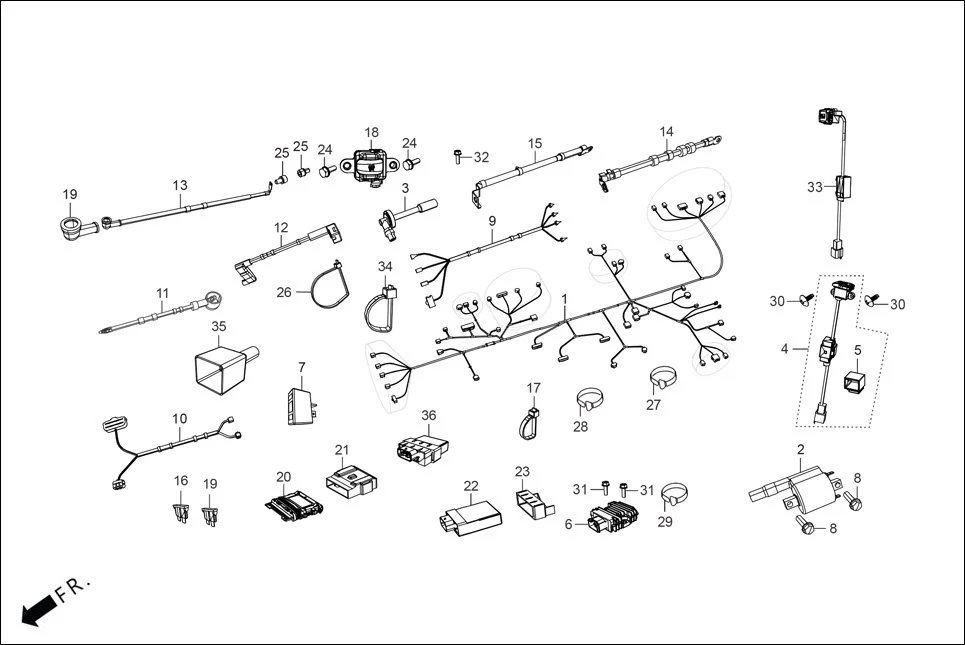

F-24 - ELECTRICALS (WIRE HARNESS)
Hero THE CENTENNIAL(OCT.,2024) · 36 parts
Parts in This Assembly (36)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32100-ACA-001 | HARNESS WIRE | 1 | |
| 2 | 30510-ABW-801 | COIL COMP. IGNITION | 1 | |
| 3 | 30700-ACA-001 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 4 | 31300-ACA-00099 | USB CHARGER ASSY | 1 | |
| 5 | 31307-ABZ-601 | CUSHION USB UNIT | 1 | |
| 5 | 31307-ACK-421 | CUSHION USB UNIT | 1 | |
| 6 | 31600-ACA-001 | REG RECT COMP | 1 | |
| 7 | 31700-HMC-000 | RECTIFIER | 1 | |
| 8 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 9 | 32106-ACA-001 | SUB CORD WINKER | 1 | |
| 10 | ACAAA7R000000G | SUB CORD HEAD LIGHT | 1 | |
| 11 | 32110-ACA-001 | SUB CORD OIL P SW | 1 | |
| 12 | 32401-ACA-001 | CABLE ST MAG | 1 | |
| 13 | 32410-ACA-001 | CABLE START MOTOR | 1 | |
| 14 | 32601-ACA-001 | CABLE BATT EARTH | 1 | |
| 15 | 32602-ACA-001 | CABLE ENG EARTH | 1 | |
| 16 | 98210-HMC-000 | MINI FUSE 10A | 4 | |
| 17 | 32642-RAA-000 | CLAMP BAND | 3 | |
| 18 | 35160-AAE-31099 | SENSOR ASSY BANK ANGLE | 1 | |
| 18 | 35160-AAE-312 | SENSOR ASSY BANK ANGLE | 1 | |
| 19 | 98215-HMC-000 | MINI FUSE 15A | 4 | |
| 20 | 38770-ACA-002 | UNIT COMP ECU | 1 | |
| 21 | 38771-ACD-000 | CUSHION PGM FI IGN UNIT | 1 | |
| 22 | 38870-ACA-001 | UNIT COMP BCM | 1 | |
| 23 | 38871-ACA-001 | CUSHION BCM UNIT | 1 | |
| 24 | 90002-KRM-840 | BOLT, FLANGE 5X14 | 2 | |
| 25 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 27 | 91540-AAN-410 | CLIP, BAND HARN | 2 | |
| 28 | 91541-ABG-000 | CLIP BAND | 1 | |
| 29 | 32161-404-000 | BAND B-1,WIRE | 4 | |
| 30 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 2 | |
| 32 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 1 | |
| 33 | 31304-ACA-002 | USB CHARGER | 1 | |
| 34 | 91551-RAA-000 | BAND CLAMP | 1 | |
| 35 | 32103-GE0-000 | COVER,CONNECTOR B | 1 | |
| 36 | 38800-ACA-001 | UNIT ASSY BCM | 1 | |
