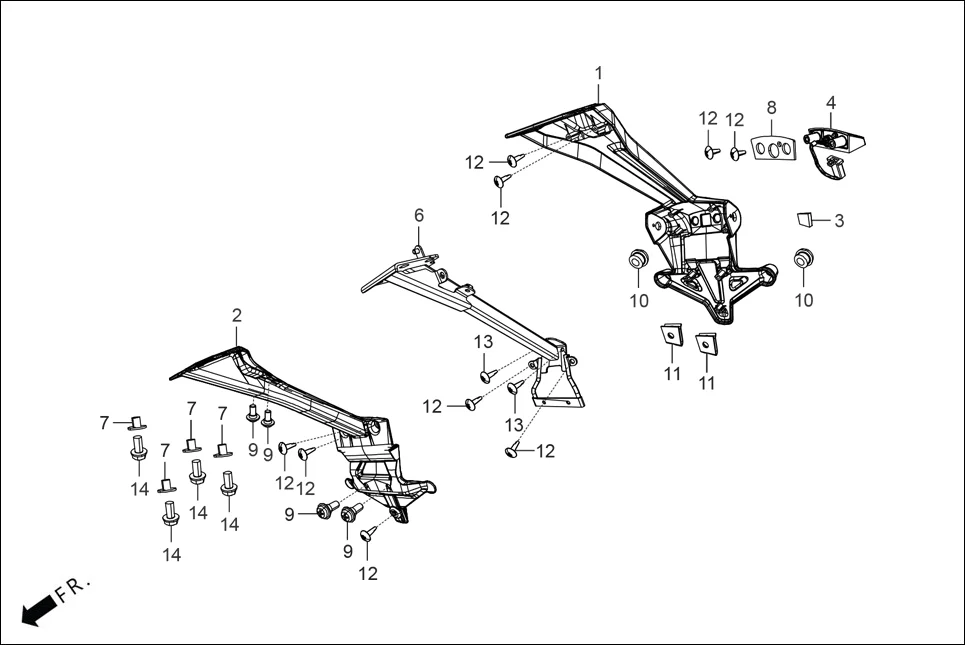

F-21 - REAR FENDER
Hero THE CENTENNIAL(OCT.,2024) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ACYAB4L001000G | FENDER REAR A | 1 | |
| 2 | ACYAB4L004000G | FENDER REAR B | 1 | |
| 4 | 33720-ACD-001 | LIGHT ASSY LICENSE | 1 | |
| 5 | 33743-AAR-001 | REFLEX REFLECTOR SIDE | 1 | |
| 6 | ACYAB4L008000G | STAY FENDER REAR COMP | 1 | |
| 7 | 77201-ACA-000 | COLLAR, FENDER MTG. | 4 | |
| 8 | 80203-ACP-001 | RUBBER LICENSE LIGHT | 1 | |
