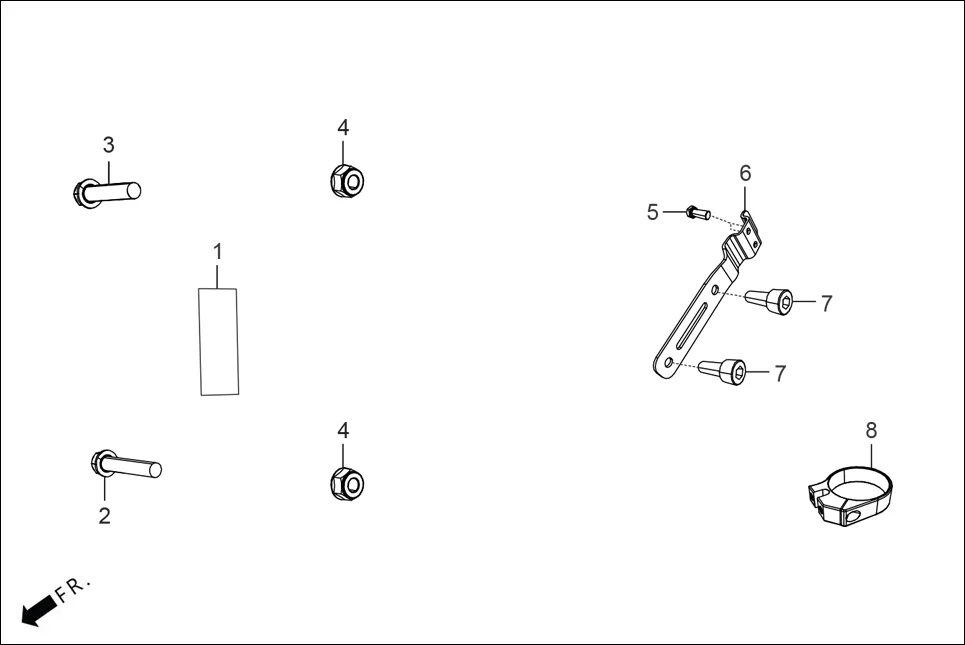

F-20 - REAR CUSHION
Hero THE CENTENNIAL(OCT.,2024) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ACYAC3J001000G | CUSHION REAR ASSY | 1 | |
| 2 | 90154-AAB-A00 | BOLT FLANGE 10X55 | 1 | |
| 3 | 90159-AAB-A00 | BOLT FLANGE 10X50 | 1 | |
| 4 | 90304-KST-942 | NUT FLG.PT 10MM | 2 | |
| 5 | 93301-05012-0J | BOLT, HEX ., 5 X 12 | 2 | |
| 6 | ACYAC3J000000G | STAY CANISTER MOUNTING | 1 | |
| 7 | 96600-08025-00 | SOCKET, BOLT, 8 X 25 | 2 | |
| 8 | ACYAC3J002000G | CLAMP CANISTER | 1 | |
